racks and ladders: LDX-3000; MULTIFUNCTIONAL WALL BARS; code LDX-3000

KEY POINTS
TRACTION TOWER
with six non-slip handles. Height from the ground 2260 mm - width 1208 mm - ø 32 mm

MOUNTING STRUCTURE
oval section steel 80x40x2mm

PIOLI
10 oval-section rungs, 40x32 mm. Length 710 mm. Rung spacing 220 mm. Distance between first rung and ground 160 mm.

WALL MOUNTING BRACKETS
No. 4 length 108 mm

Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!

Images and data in the catalog and on the website's product pages may differ in some details from the originals

COMPARE

Technical specifications

Product code
Product code	LDX-3000
Maximum user weight
Maximum user weight	100 kg
Usage
Usage	PROFESSIONAL
Features

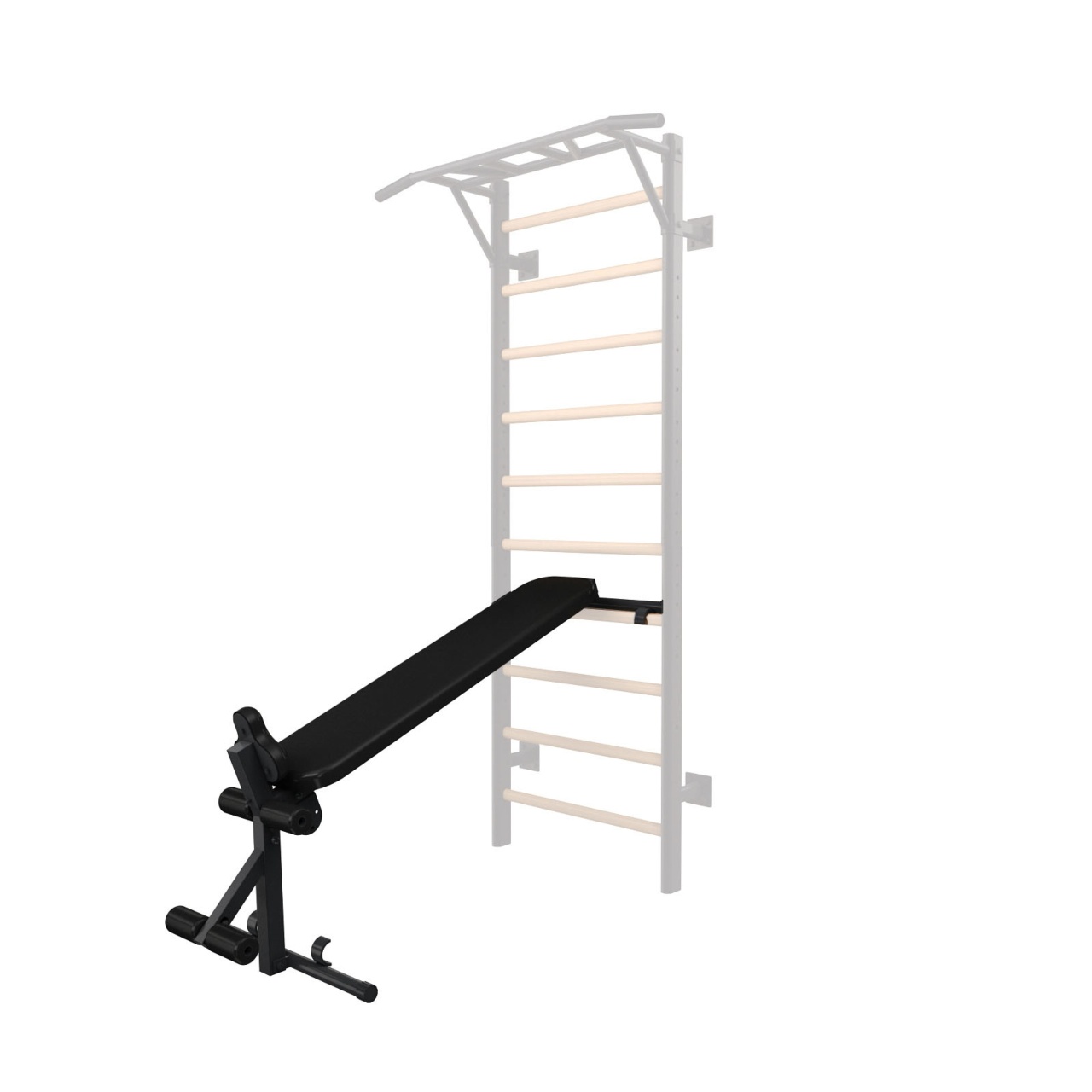

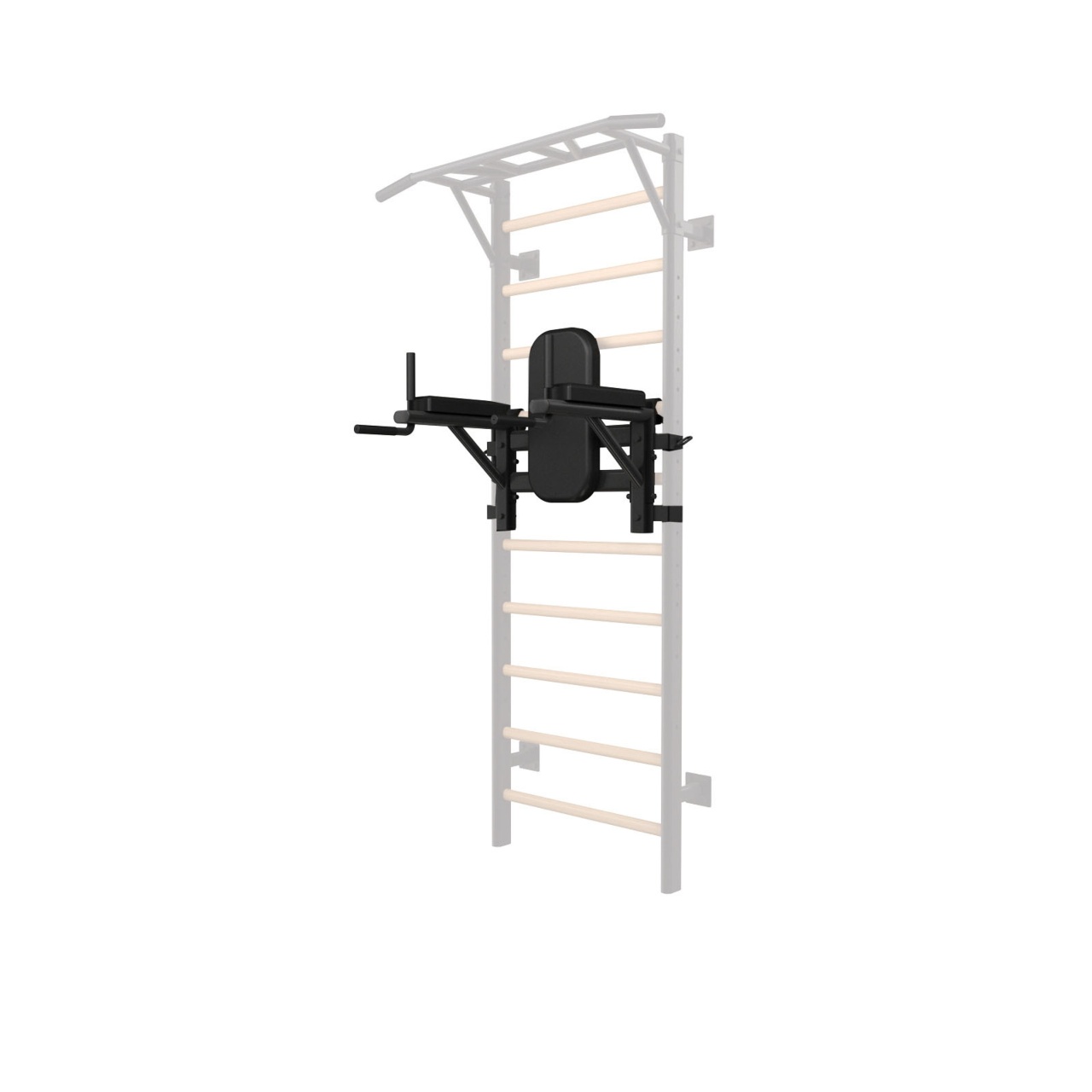

Features	Equipment/notes: traction lattice Traction frame with six non-slip handles. Height from the ground 2260 mm, width 1208 mm, diameter 32 mm. Rack configuration rung module with 10 oval section rungs measuring 40 x 32 mm. Length 710 mm. Rung spacing 220 mm. Distance between first rung and ground 160 mm. Wall mounting brackets, 4 pieces, length 108 mm OPTIONAL COD. CFSLDX3000 PAIR OF SAFETY LOCKS FOR BALANCER: thickness 4 mm. Support surface length 500 mm. Equipped with ø16 mm safety guards and pins. Quick release fastening system with ø16 mm connection pins. COD. DIP-STATIONLDX3000 DIP STATION: Dimensions 797 x 724 x 570 mm. Cushions 60 mm thick. 2 safety pins ø16 mm. Quick release fastening system with 2 hooks. 2 integrated high barbell racks for squat training. COD.PANCA-LDX3-5 BENCH: Dimensions 1346 x 666 x 857 mm (in flat position). Backrest dimensions 1230 x 300 x 50 mm. 3-level tilt adjustment. Seat dimensions: 187 x 200 x 50 mm. Removable seat. 4 modes of use: flat bench, abdominal bench, incline bench, and decline bench. Quick-release fastening system with 2 hooks. Ankle lock rollers included.
Frame
Frame	oval section steel uprights 80 x 40 x 2 mm
Product weight
Product weight	28.5 kg
Product Dimensions
Product Dimensions	1208 x 518 x 2330 mm
Packaged product weight
Packaged product weight	32 kg
Packaging dimensions
Packaging dimensions	2340 x 240 x 150 + 1230 x 420 x 100 mm
Certifications
Certifications	EN20957-1 / EN957-4 class S
EAN
EAN	8029975805702
