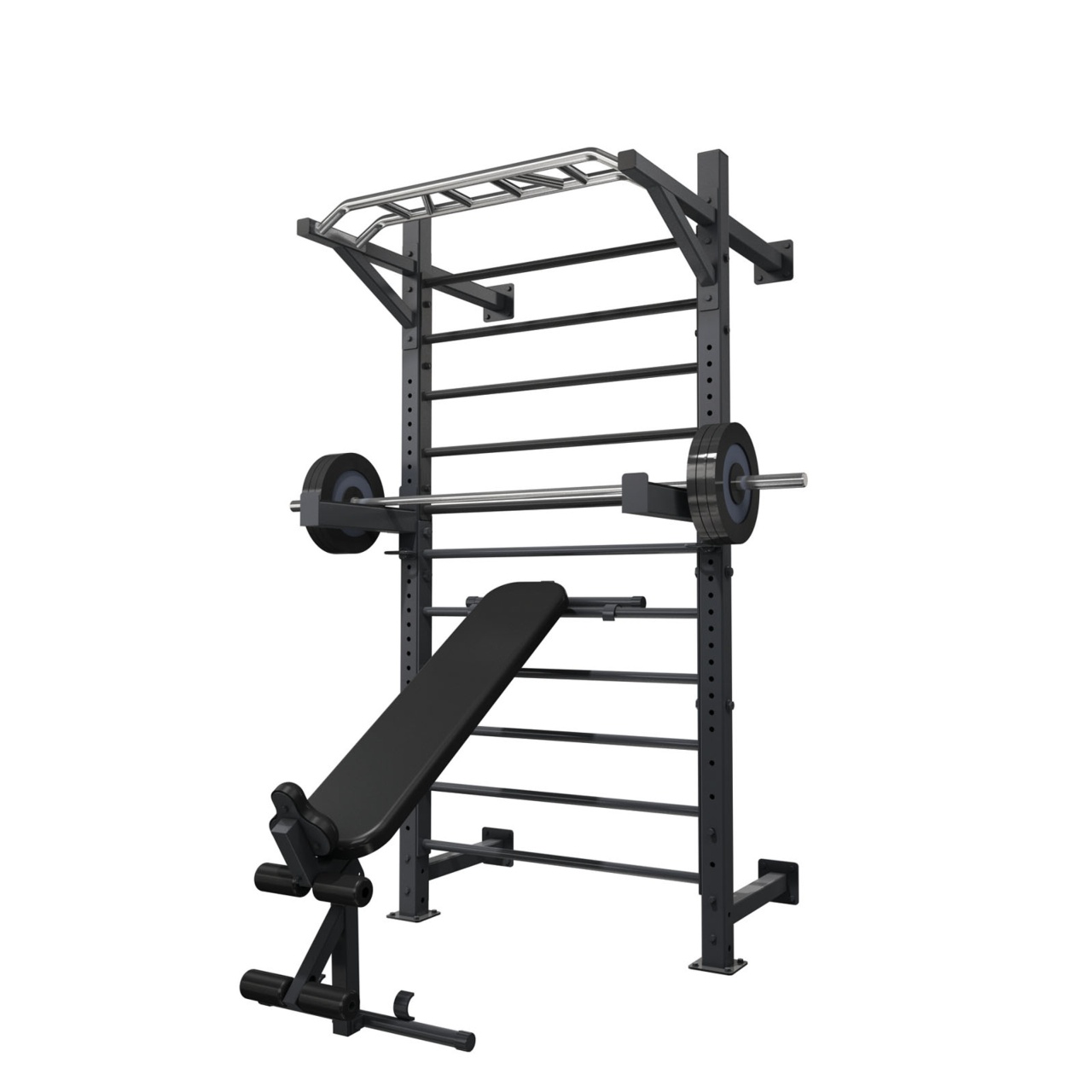

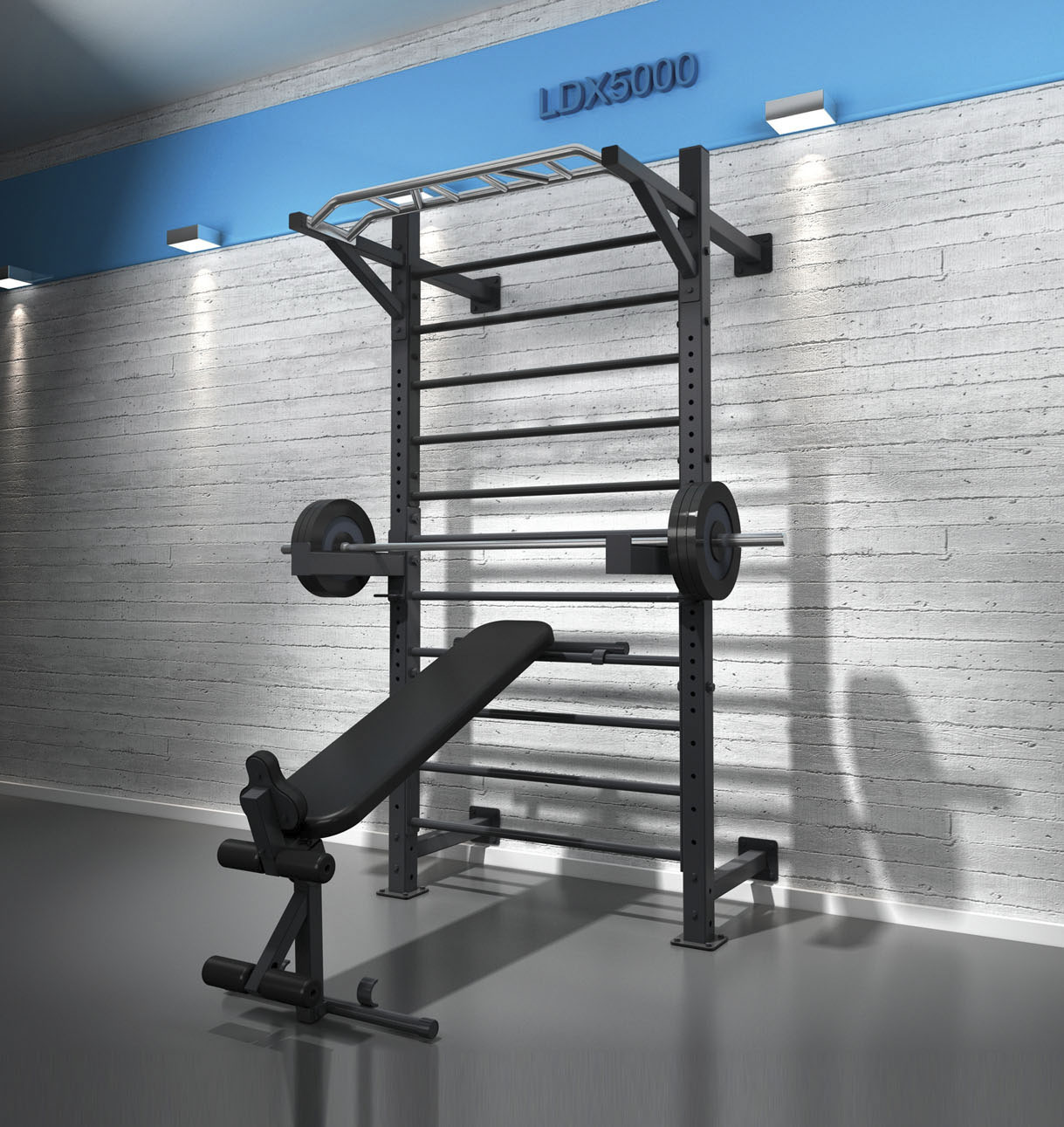

LDX 5000
MULTIFUNCTIONAL WALL BARS
code LDX-5000
LDX 5000
  • KEY POINTS
  •  J-hook
    extra strong, 6 mm thick with UHMW (Ultra High Molecular Weight) protection

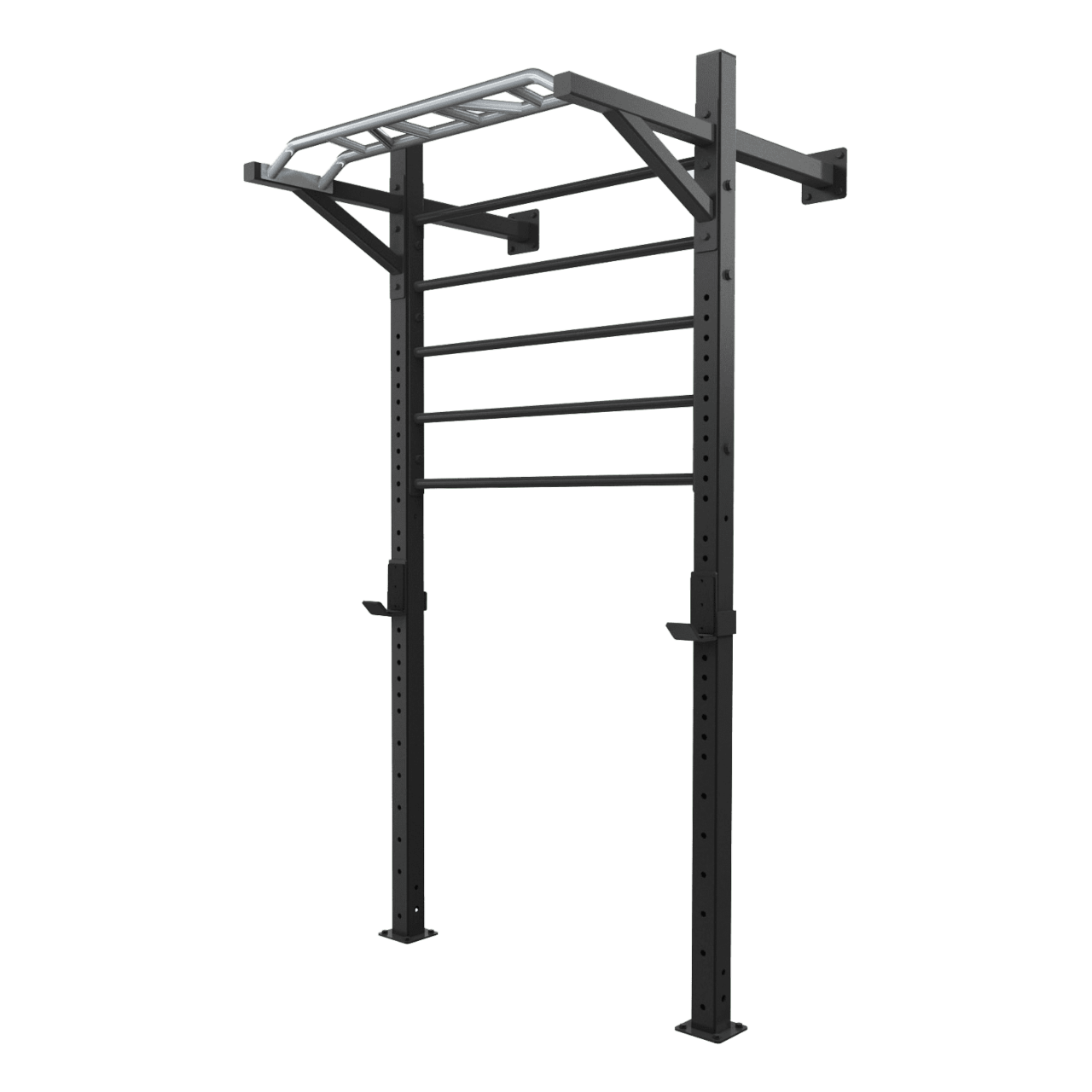

     TRACTION TOWER
    Traction frame: with six non-slip handles.
    Height from the ground 2230 mm - width 1080 mm - ø36 and ø 30 mm
     MOUNTING STRUCTURE
    Reinforced steel tubular section, square, 75x75x3 mm
     PIOLI MODULE
    5 pegs 1050 x ø32, dimensions 1050 x 60 x 872 mm. Bolt fastening.
     WALL MOUNTING BRACKETS
    No. 2 length 512 mm
Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!
Images and data in the catalog and on the website's product pages may differ in some details from the originals
loading ... COMPARE COMPARE NOW

Technical specifications

Product code
Product codeLDX-5000
Maximum user weight
Maximum user weight120 kg
Usage
UsagePROFESSIONAL
Features
Features
  • Equipment/notes: 2 J-cups, pull-up bar
  • Traction frame with six non-slip handles.
    Height from ground 2230 mm - width 1080 mm - ø36 and ø 30 mm
  • Rack configuration peg module no. 5 pegs 1050 x ø32. Dimensions 1050 x 60 x 872 mm. Bolt fastening.
  • Wall mounting brackets, 2 pcs., length 512 mm

OPTIONAL

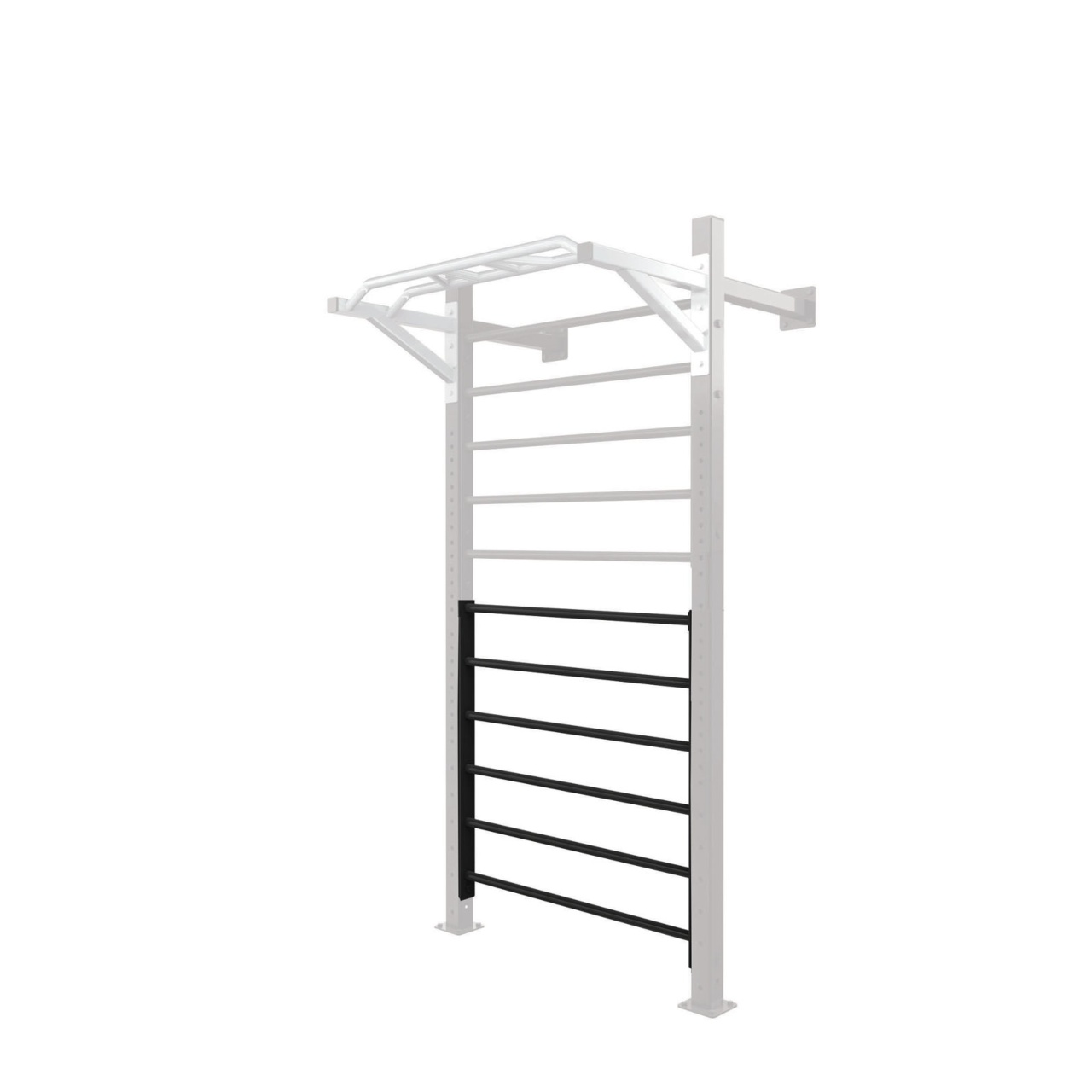

  •  CODE CODE ALDX5-MPS
    RUNNER MODULE CLIMBING WALL CONFIGURATION: 6 runners 1050xø32 mm. Dimensions 1240x75x1125 mm. Fastening with bolts included

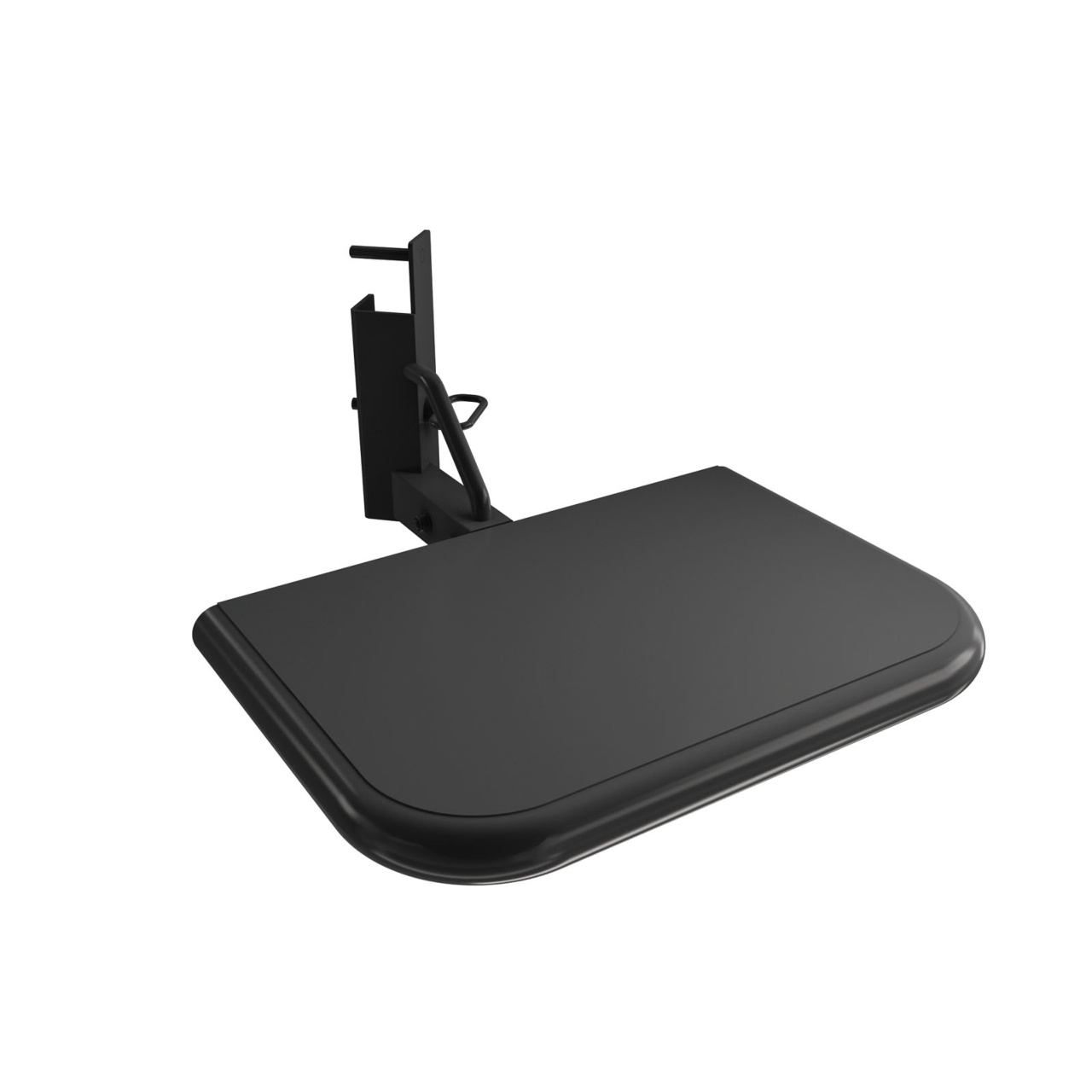

  •  CODE ALDX5-SU
    STEP PLYO: platform surface 600x500 mm. Safety pin ø16 mm. Quick-release fastening system with connection pin ø16 mm.

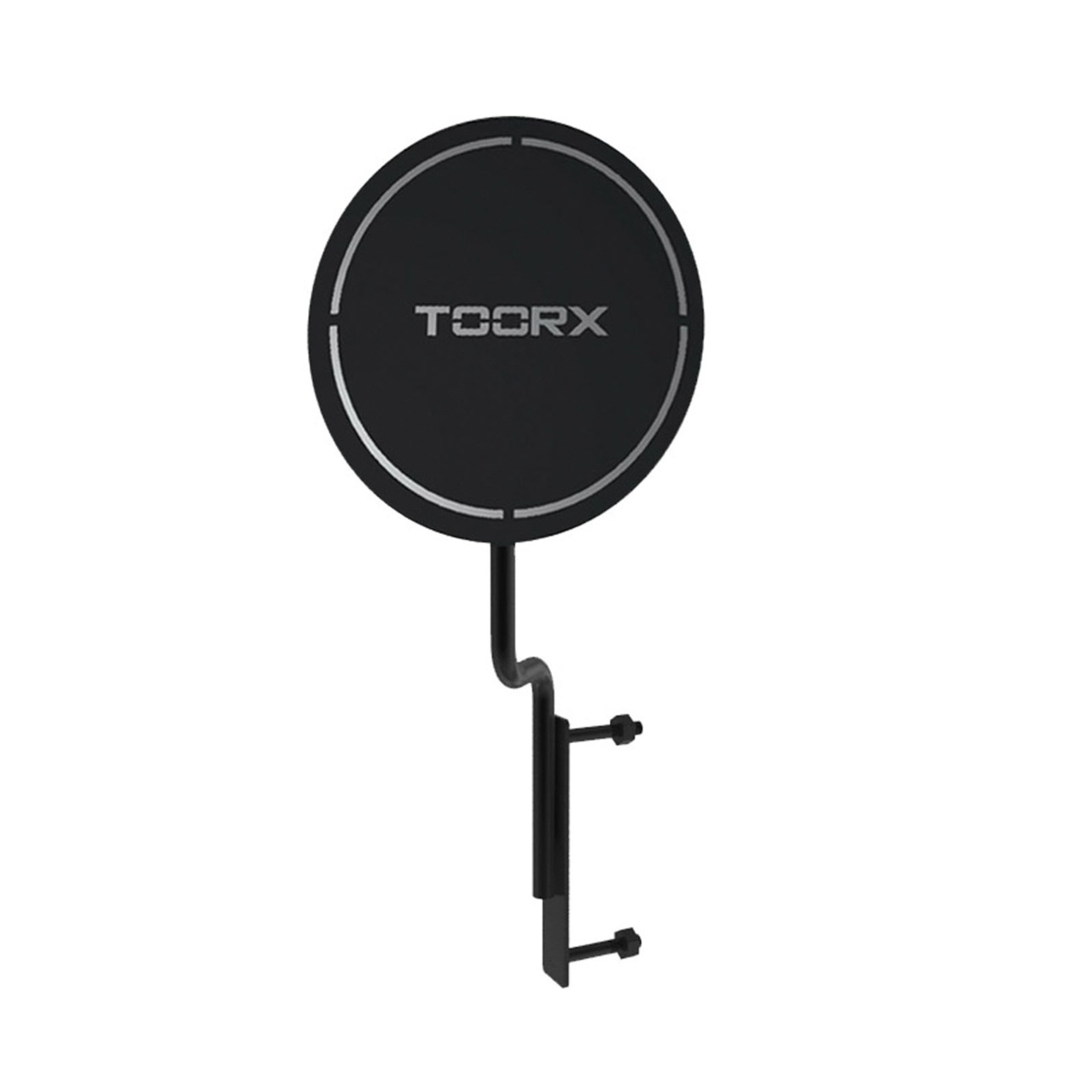

  •  CODE ALDX5-B
    TARGET:disc size ø40 mm. Brackets thickness 6 mm

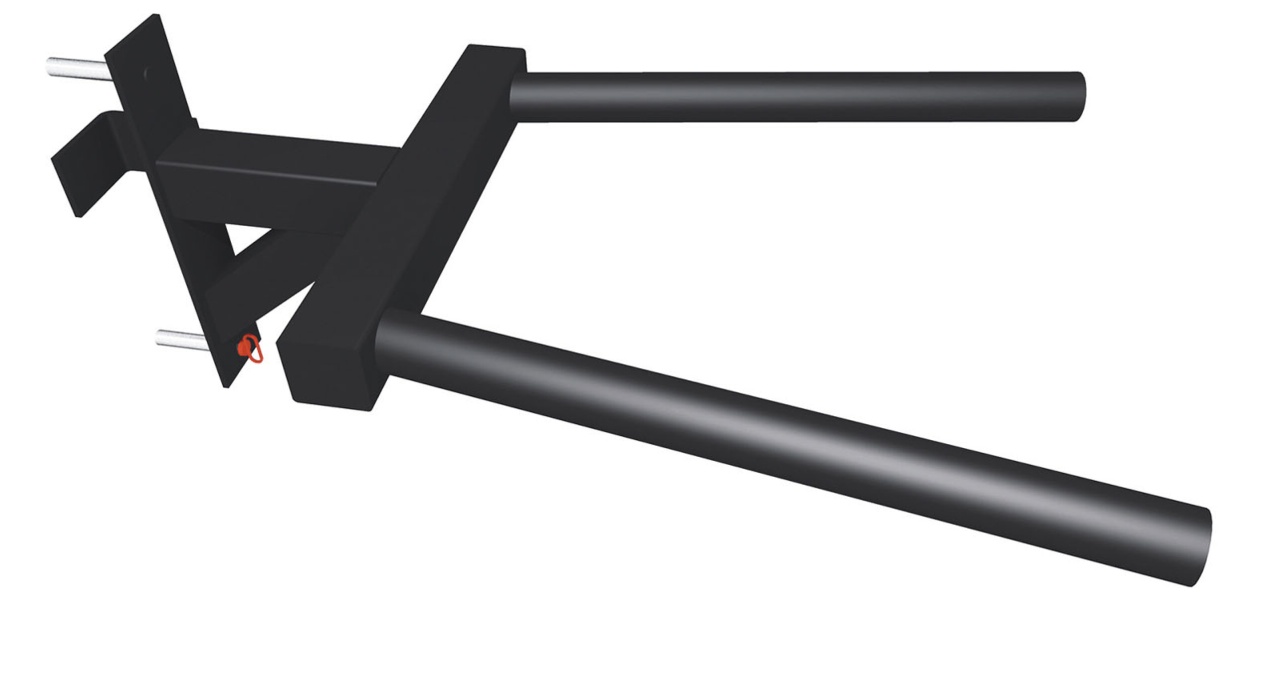

  •  COD: AG75-P
    PARALLEL: dimensions887x600x358 mm. Safety pin ø16 mm. Quick release fastening system with connection pin ø16 mm.

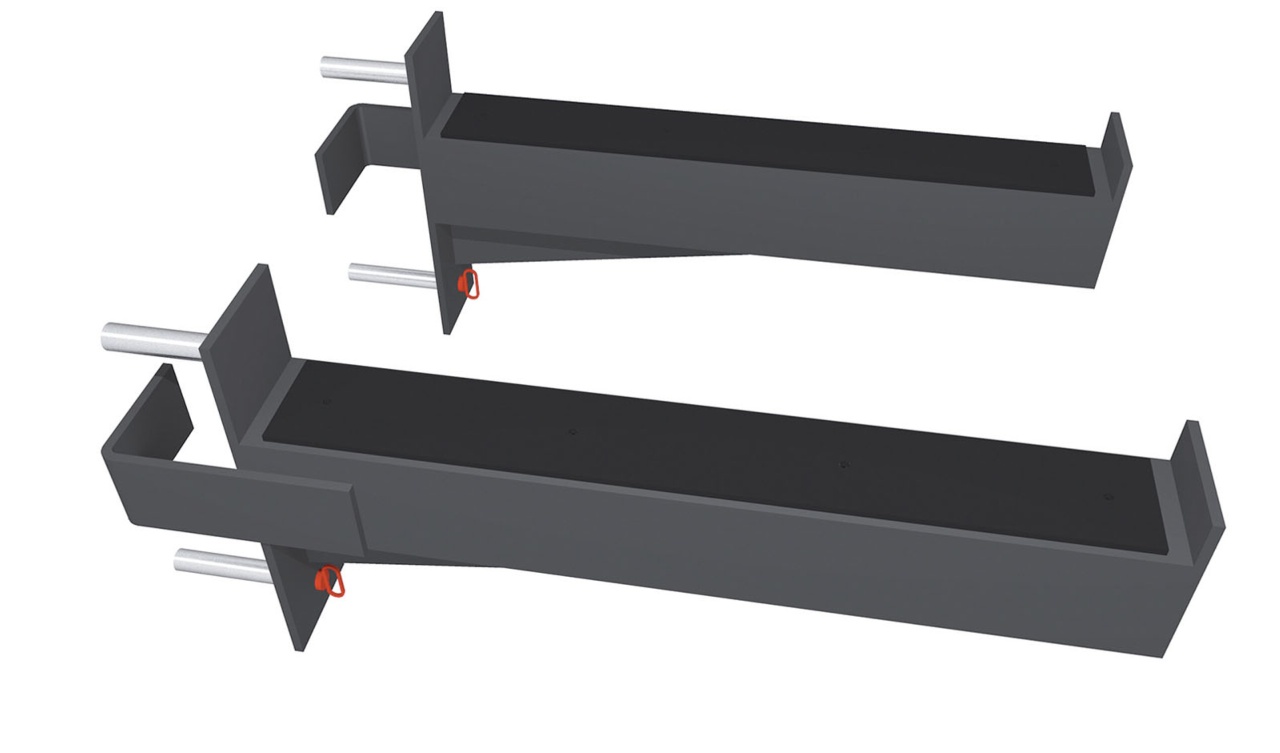

  •  CODE AG75-FS
    PAIR OF SAFETY LATCHES FOR BALANCER: thickness8 mm. Support surface 500 mm. Equipped with ø16 mm safety guards and pins. Quick-release fastening system with ø16 mm connection pins.

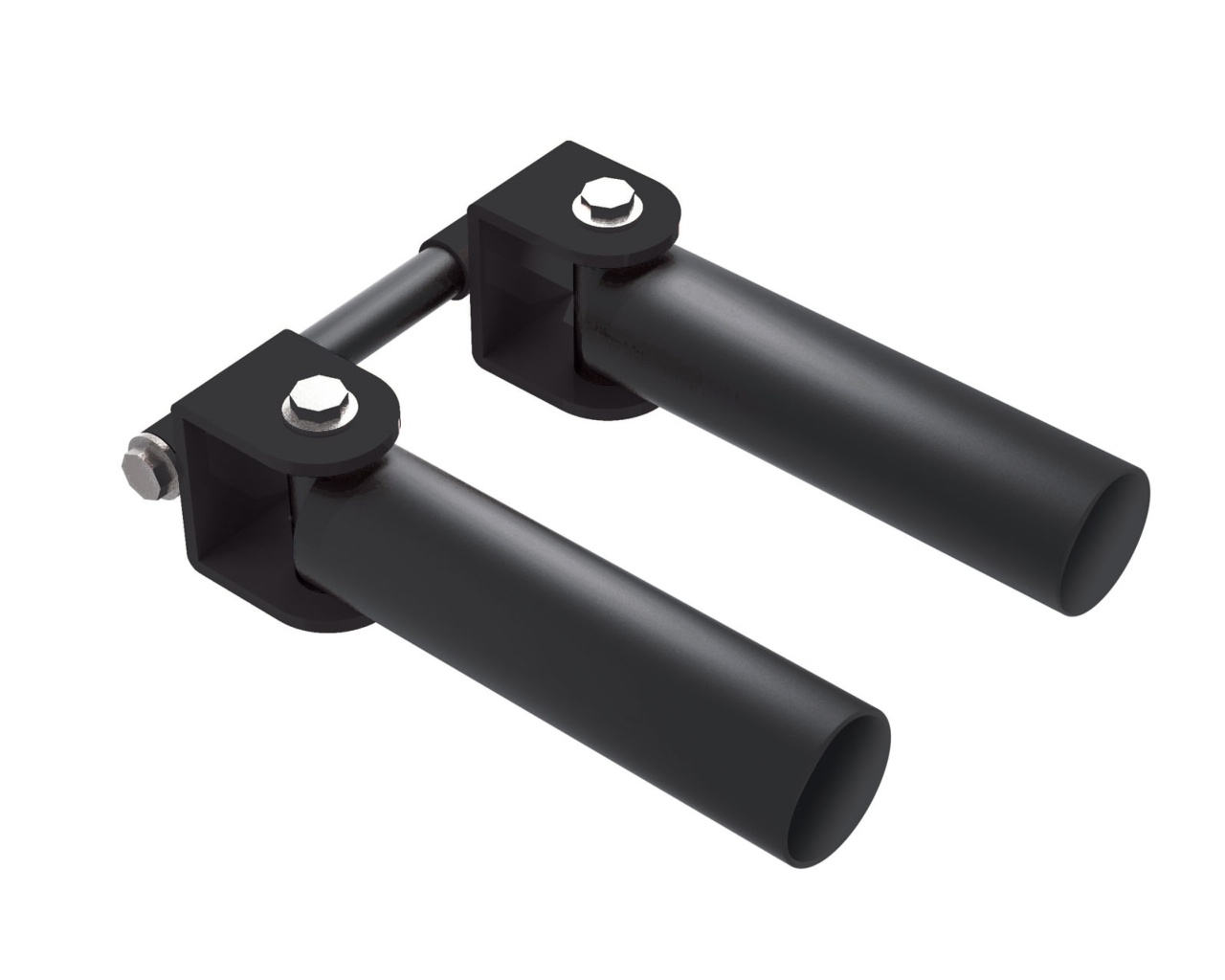

  •  COD.AGU-LD
    LANDMINE DOPPIO:gimbaljointwith double seat for ø50 mm rocker arms. Length 250 mm

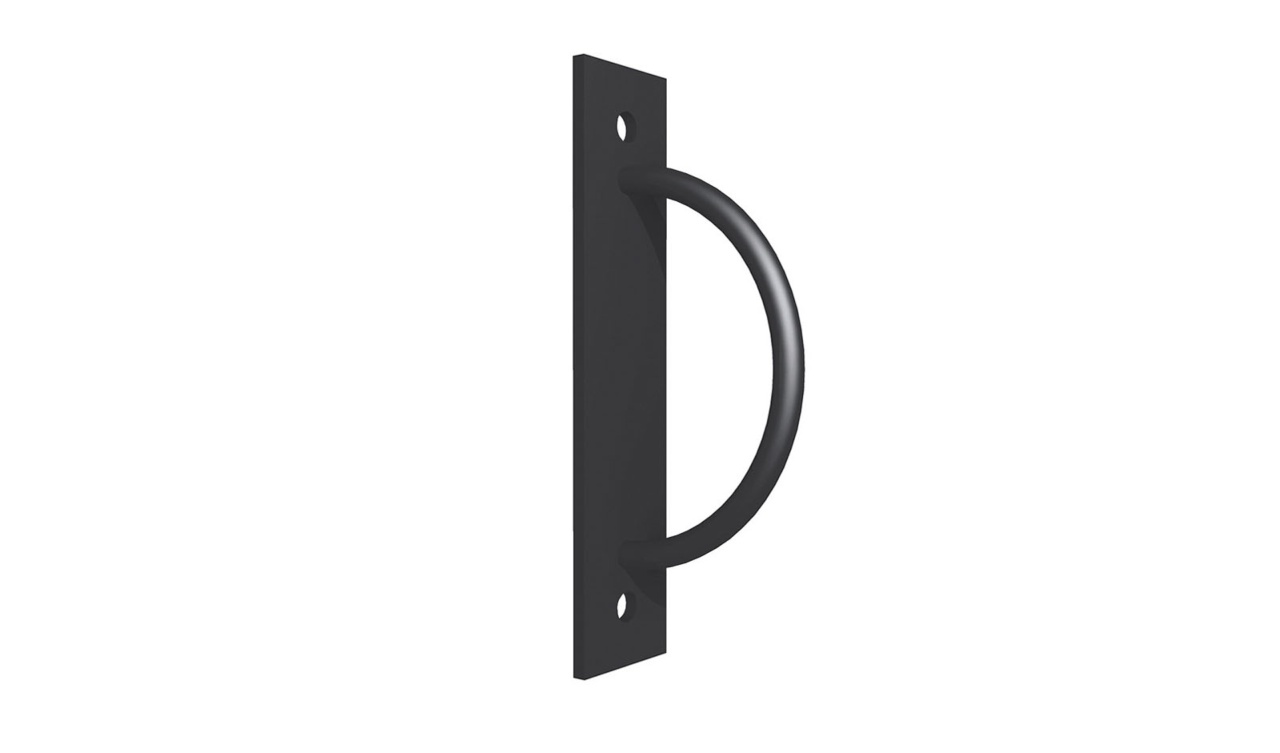

  •  AGU-GC
    ROPE HOOK: designedfor battle ropes, climbing ropes, and punching bags

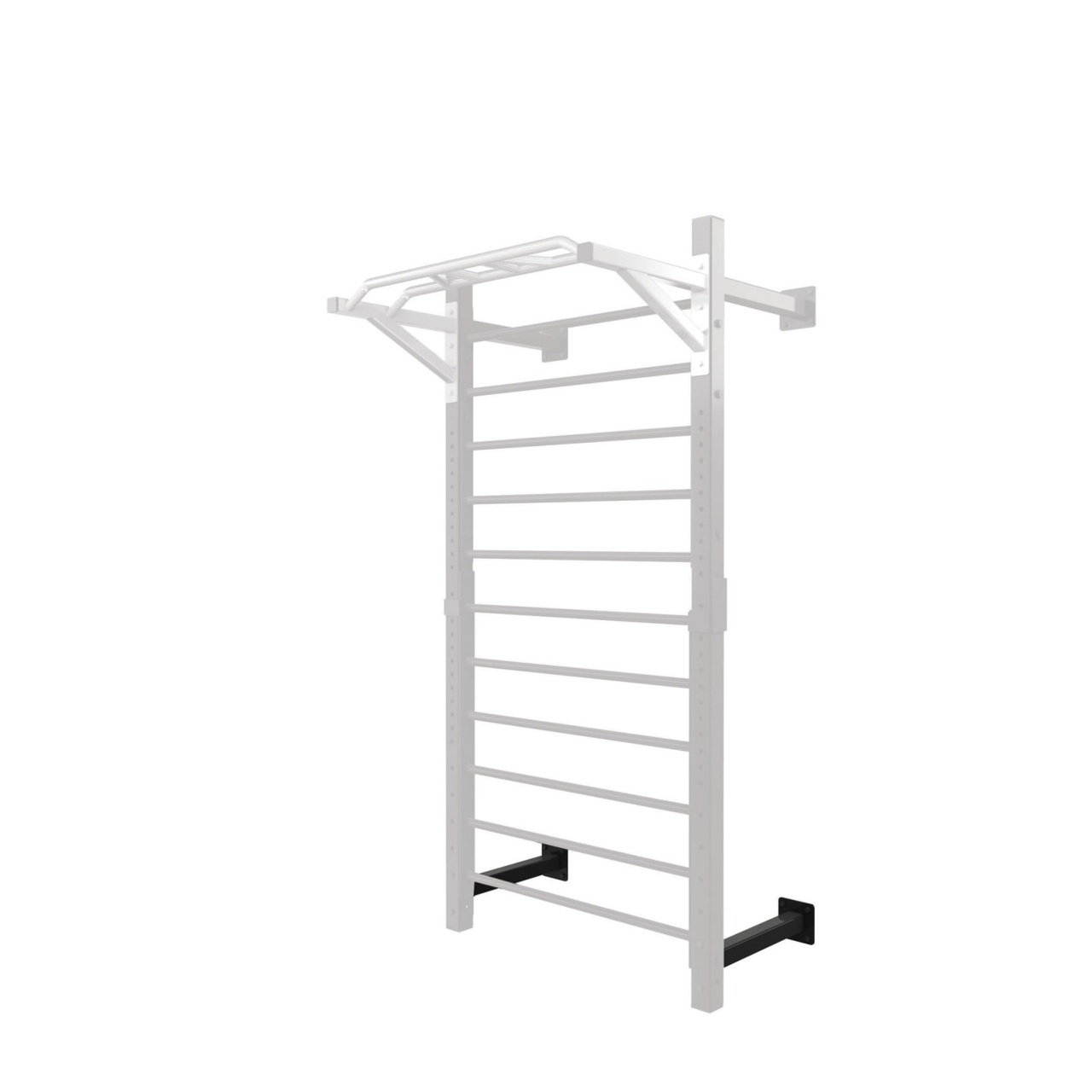

  •  COD. ALDX5-SM
    PAIR OF WALL BRACKETS: additionalfor wall mounting only

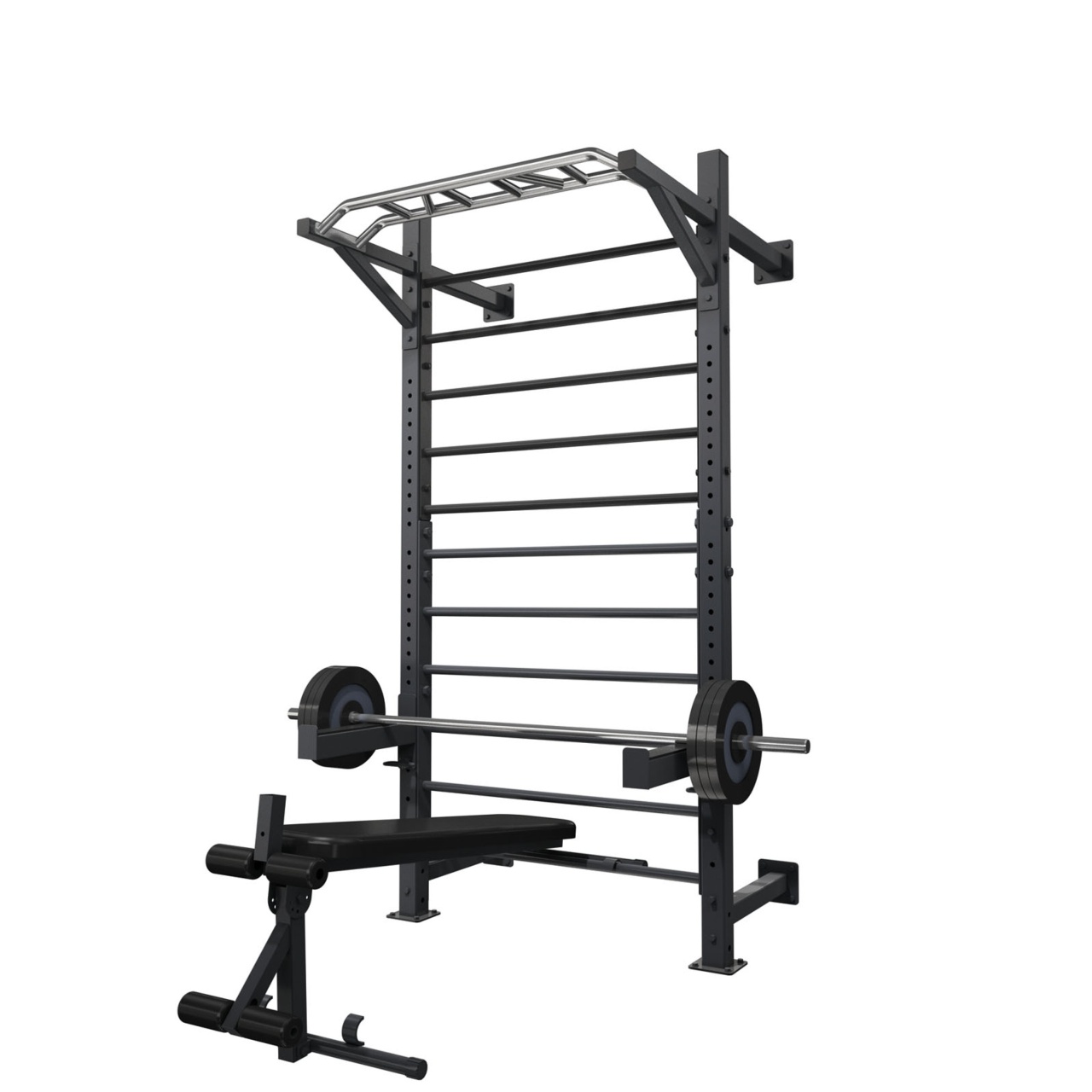

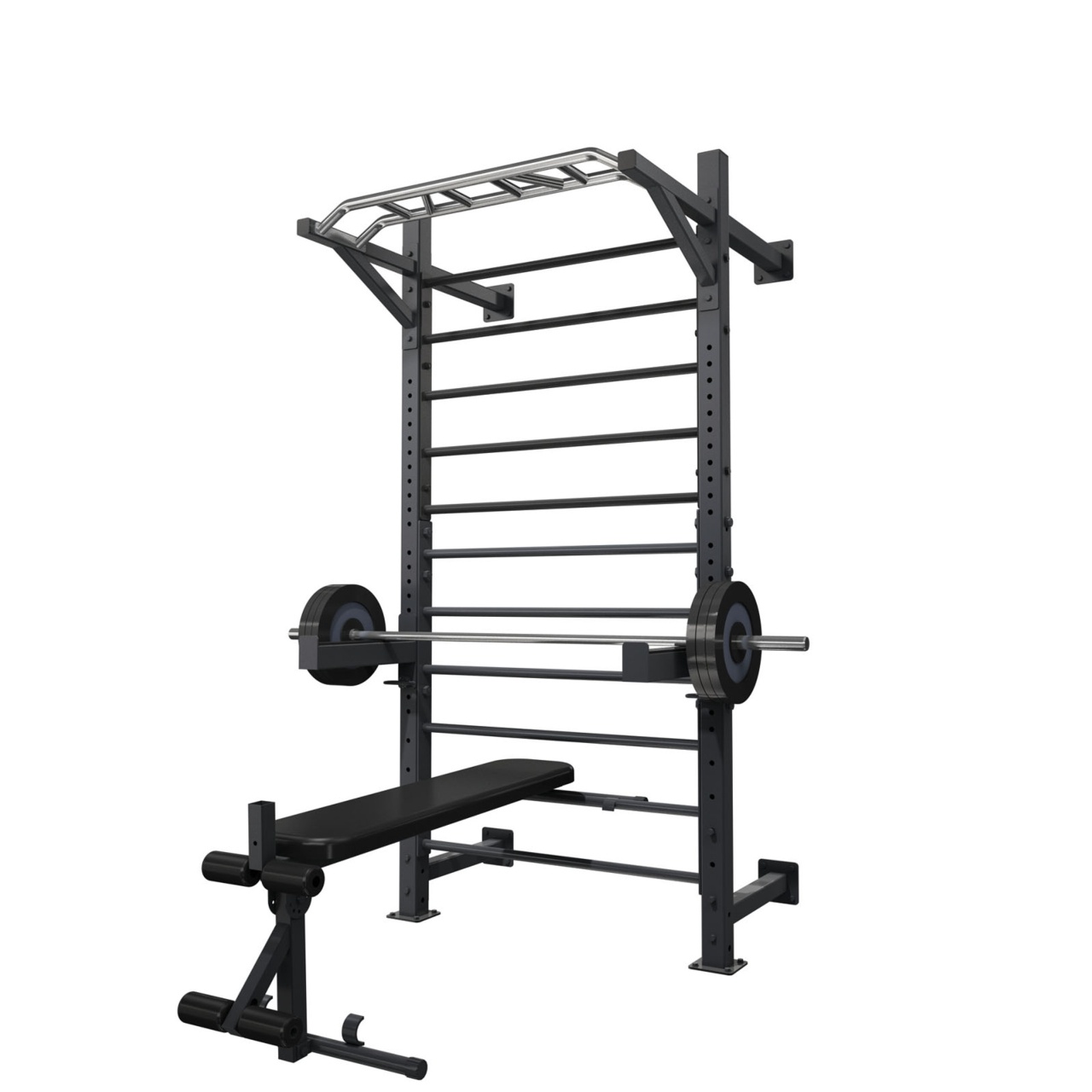

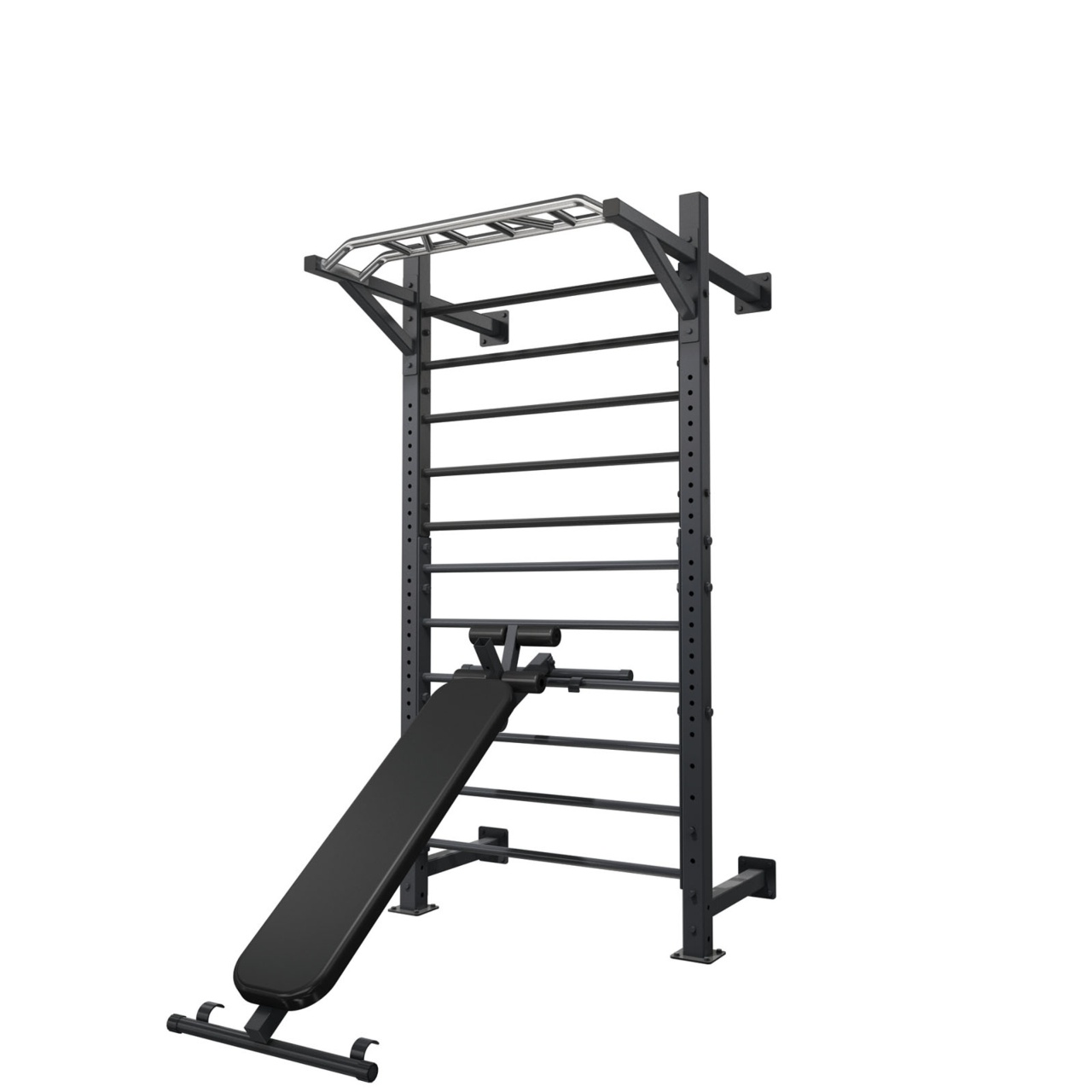

  •  CODE PANCA-LDX3-5
    BENCH: Dimensions1346x666x857 mm (in flat position). Backrest dimensions 1230x300x50mm. 3-level incline adjustment. Seat dimensions 187x200x50 mm. Removable seat. 4 modes of use: flat bench, abdominal bench, incline bench, and decline bench. Quick-release fastening system with 2 hooks. Ankle lock rollers included.
Frame
Framesquare section tubular 75x75 mm - thickness 3 mm
Product Dimensions
Product Dimensions45.5 x 4.5 x 9.9 feet
Certifications
CertificationsEN20957-1 / EN957-4 class S
EAN
EAN8029975805528

#LDX 5000 gallery

Tag your photos and videos with #toorxvertical #perfectbalance and join the Toorx community!

CODE ALDX5-SM - OPTIONAL
ALDX5-MPS - OPTIONAL
CODE ALDX5-SU - OPTIONAL
CODE ALDX5-B - OPTIONAL
COD: AG75-P - OPTIONAL
CODE AG75-FS - OPTIONAL
CODE AGU-LD - OPTIONAL
CODE AGU-GC - OPTIONAL
CODE PANCA-LDX3-5 - OPTIONAL
CODE PANCA-LDX3-5 - OPTIONAL
CODE PANCA-LDX3-5 - OPTIONAL
CODE PANCA-LDX3-5 - OPTIONAL
CODE PANCA-LDX3-5 - OPTIONAL
