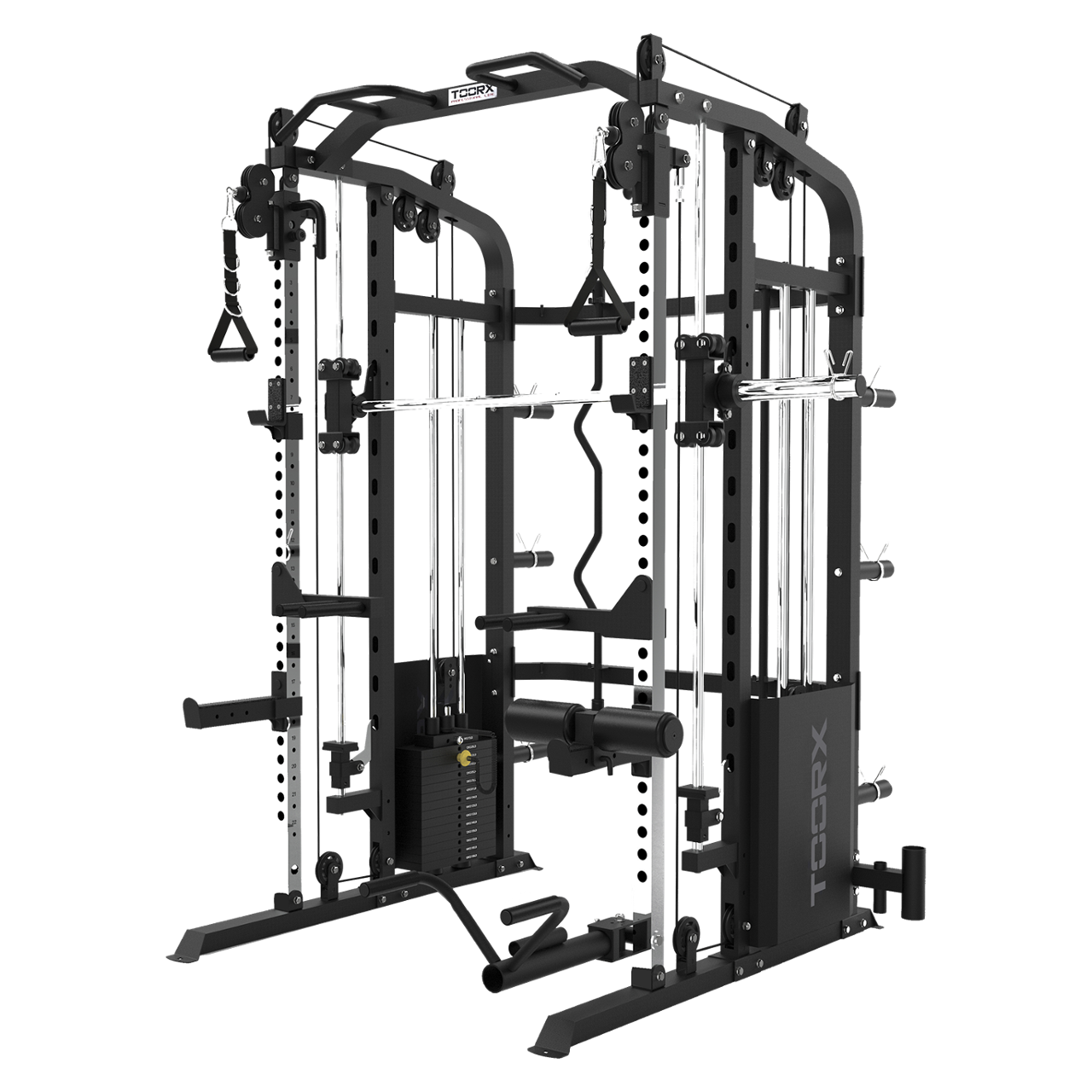

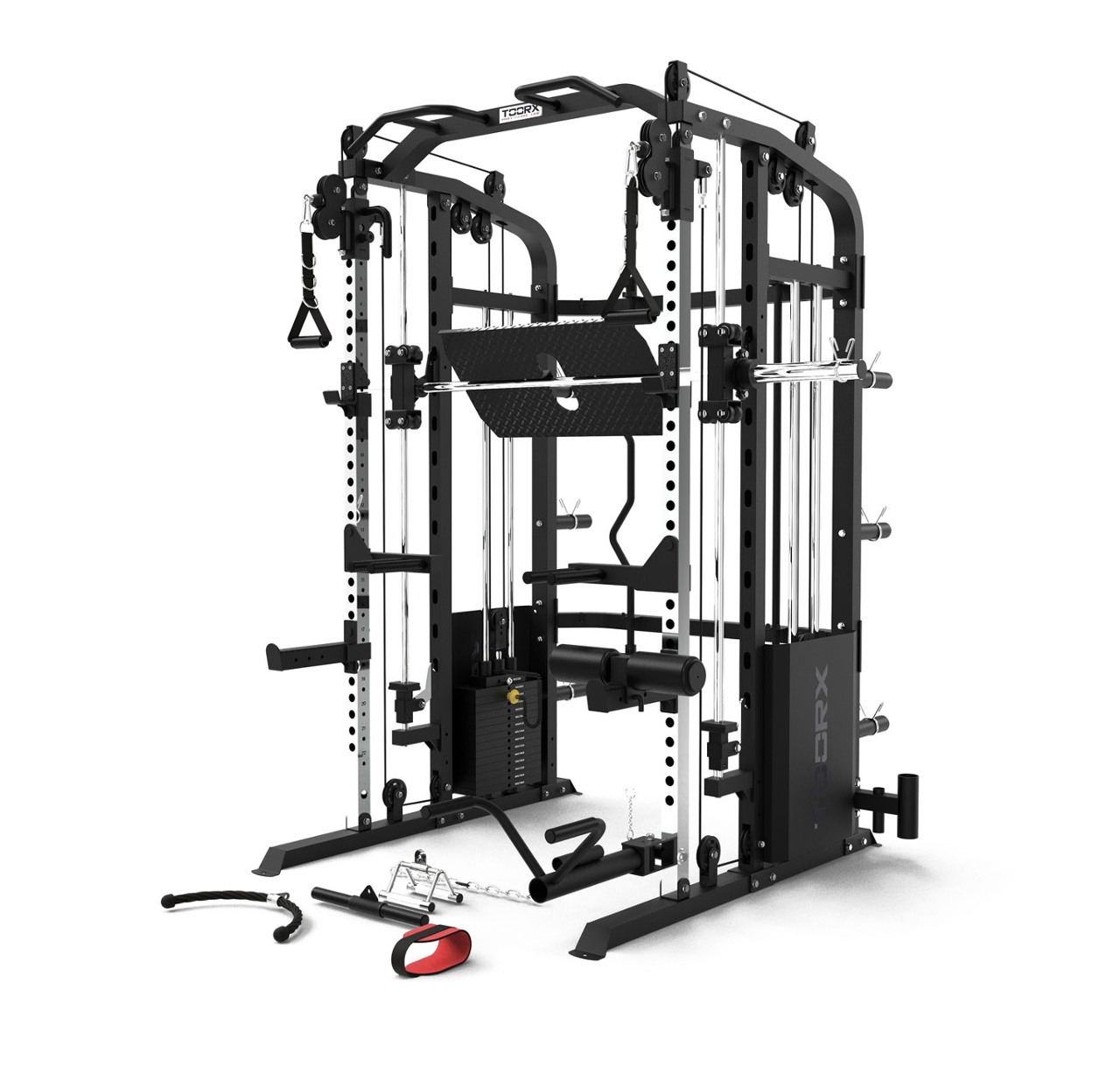

all in one: ASX-4000; 3-IN-1 dual pulley, Smith machine, rack; code ASX-4000

KEY POINTS
ALL IN ONE dual pulley, smith machine, rack.

WEIGHT PACKAGE
2 x 90 kg with protective casing

MAXIMUM USER WEIGHT
150 Kg

BARBELL
1936 mm, ball bearing slide, 2 safety devices with adjustable hook, adjustable to 12 positions (622 - 1832 mm), 110 mm pitch. Disc holder diameter 50 mm.

DOTAZIONI
3-IN-1 dual pulley, Smith machine, rack. 2 J-hooks, pair of safety catches for barbell with foam leg rollers, pull-up bar, parallel bars, barbell holder, 6 disc holders ø50 mm, 8 spring-loaded disc holders ø49 mm. Attachments: ankle strap, rope, landmine, 2 adjustable pull-up handles, triceps bar, straight triceps bar, barbell and CURL barbell.

J-CUP/SAFETY SPOTTER ARMS
Extra strong, 5 mm thick with UHMW (Ultra High Molecular Weight) protection. Adjustable from 314 to 1814 mm in 31 levels, center distance 50 mm.

Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!

Images and data in the catalog and on the website's product pages may differ in some details from the originals

COMPARE

Technical specifications

Product code
Product code	ASX-4000
Maximum user weight
Maximum user weight	150 kg
Features
Features	2 x 90 kg steel weight stack with protective cover RATIO: 1 :2 / fly handle - 1:2 / lat pull down - 1:2 / seated rowing Adjustable PULLEY 264-1839 mm on 22 levels, center distance 75 mm J-CUP/SAFETY SPOTTER ARMS Extra strong, 5 mm thick with UHMW (Ultra High Molecular Weight) protection. Adjustable from 314 to 1814 mm in 31 levels, center distance 50 mm. BARBELL 1936 mm, sliding on ball bearings, 2 safety catches with adjustable hook, adjustable to 12 positions (622 - 1832 mm), 110 mm pitch Equipment:3-IN-1 dual pulley, Smith machine, rack. 2 J-hooks, pair of safety catches for barbell with foam leg rollers, pull-up bar, parallel bars, barbell holder, 6 disc holders ø50 mm, 8 spring-loaded disc holders ø49 mm. Attachments: ankle strap, rope, landmine, 2 adjustable pull-up handles, triceps bar, straight triceps bar, barbell and curl barbell. OPTIONAL CODE LEG-PRESSASX Leg press for ASX-4000 and ASX-5000 COD. J-ARMSASX2-4-5 Jammer arms COD. LAT-SEATASX2-4-5 Lat seat CODE W-HOLDERASX Weight holder pin CODE M-BARASX Multifunctional bar COD. LPDASX2-4-5 Lat pull down
Frame
Frame	rectangular section 50x70 mm - thickness 2 mm / 2.5 mm and square section 50x50 mm - thickness 3 mm
Product weight
Product weight	369.5 kg
Product Dimensions
Product Dimensions	1516 × 1938 × 2167 mm
Packaged product weight
Packaged product weight	388.5 kg
Packaging dimensions
Packaging dimensions	A:2120x430x155 B:1560x465x220 C:1270x550x190 D:720x550x140 E:375x240x125 F:375x240x125 G:375x240x125 H:375x240x125 I : Ø92x1935
Certifications
Certifications	CE EN ISO 20957-1/957-4
EAN
EAN	8029975805863
