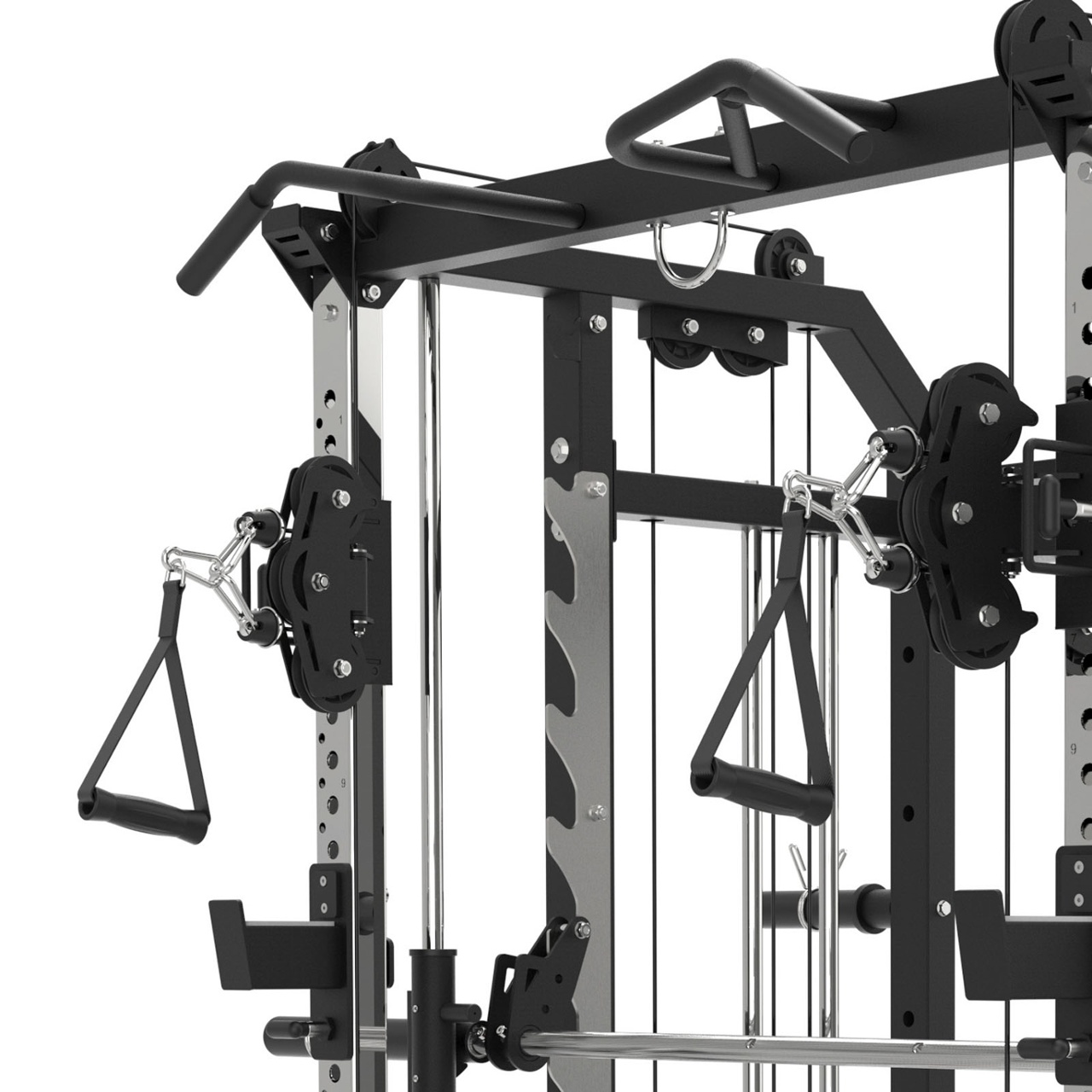

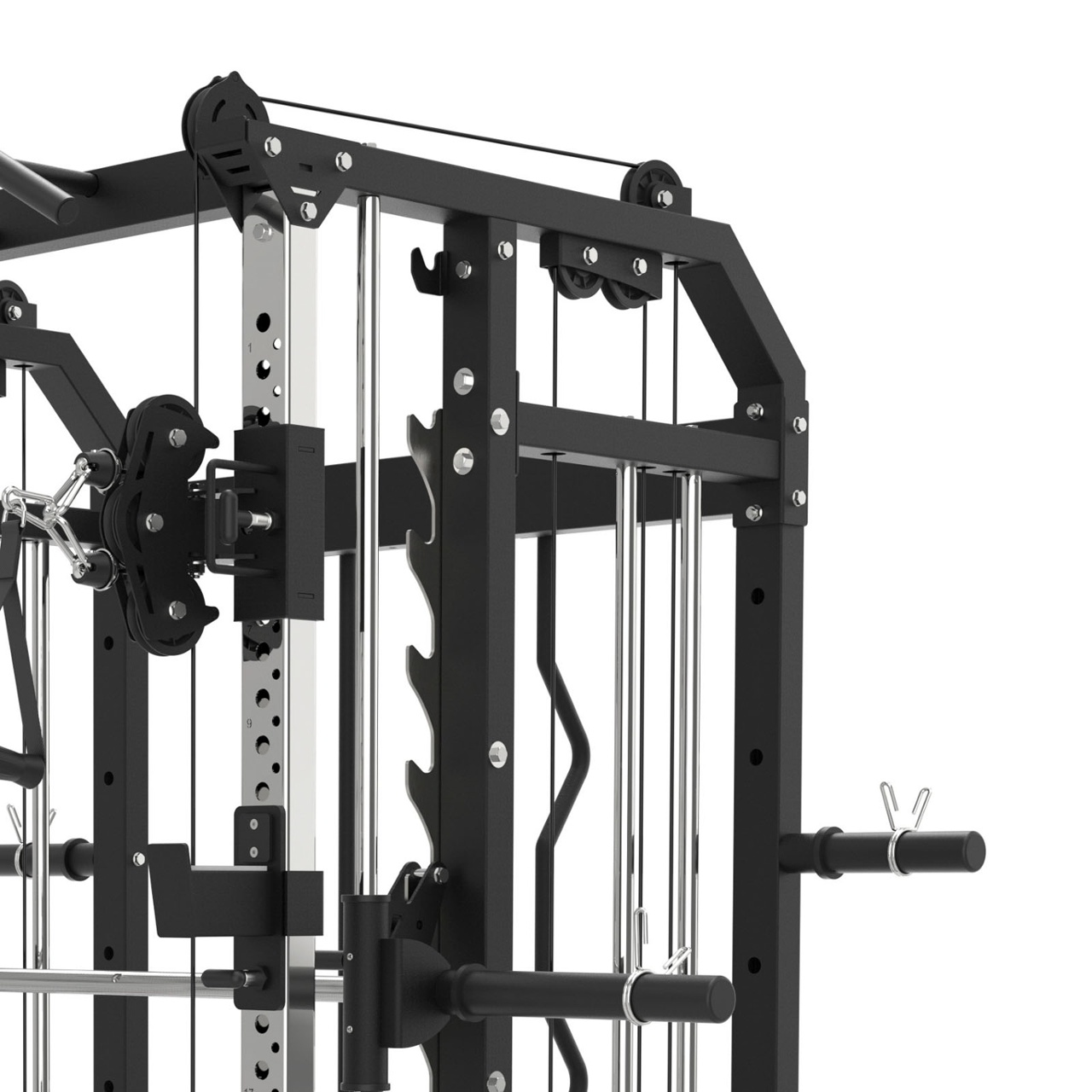

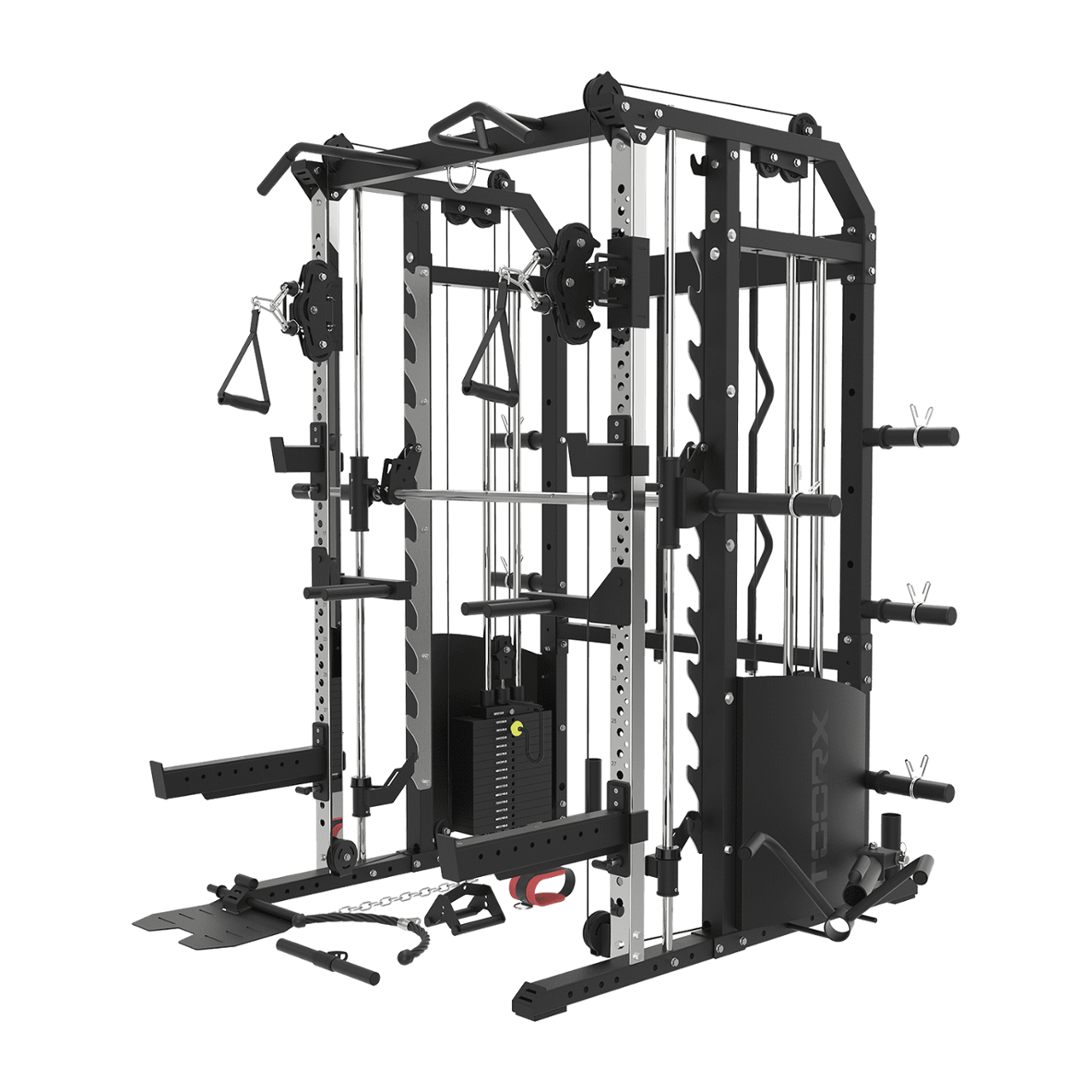

all in one: ASX-4500; 3-IN-1 dual pulley, Smith machine, rack; code ASX-4500

KEY POINTS
ALL IN ONE dual pulley, smith machine, rack.

WEIGHT PACKAGE
2 x 90 kg with protective casing

MAXIMUM USER WEIGHT
135 kg

BARBELL
2037 mm, sliding on linear ball bearings, 2 safety devices with adjustable hook, adjustable to 11 positions (353-1822 mm), 130 mm pitch. Disc holder diameter 50 mm.

EQUIPMENT
3-IN-1 dual pulley, Smith machine, rack. 2 J-hooks, pair of barbell safety catches, pull-up bar, parallel bars, barbell holder, 6 disc holders ø50 mm and 25 mm, 8 spring-loaded disc holders ø49 mm. Attachments: ankle strap, double triceps rope, chain, landmine, 2 pull-up handles, non-slip platform, double handle, triceps bar, barbell and curl barbell.

J-CUP/SAFETY SPOTTER ARMS
ARMS Extra strong, 5 mm thick with UHMW (Ultra High Molecular Weight) protection. Adjustable from 321 to 1822 mm in 31 levels, center distance 50 mm.

Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!

Images and data in the catalog and on the website's product pages may differ in some details from the originals

COMPARE

Technical specifications

Product code
Product code	ASX-4500
Maximum user weight
Maximum user weight	135 kg
Features

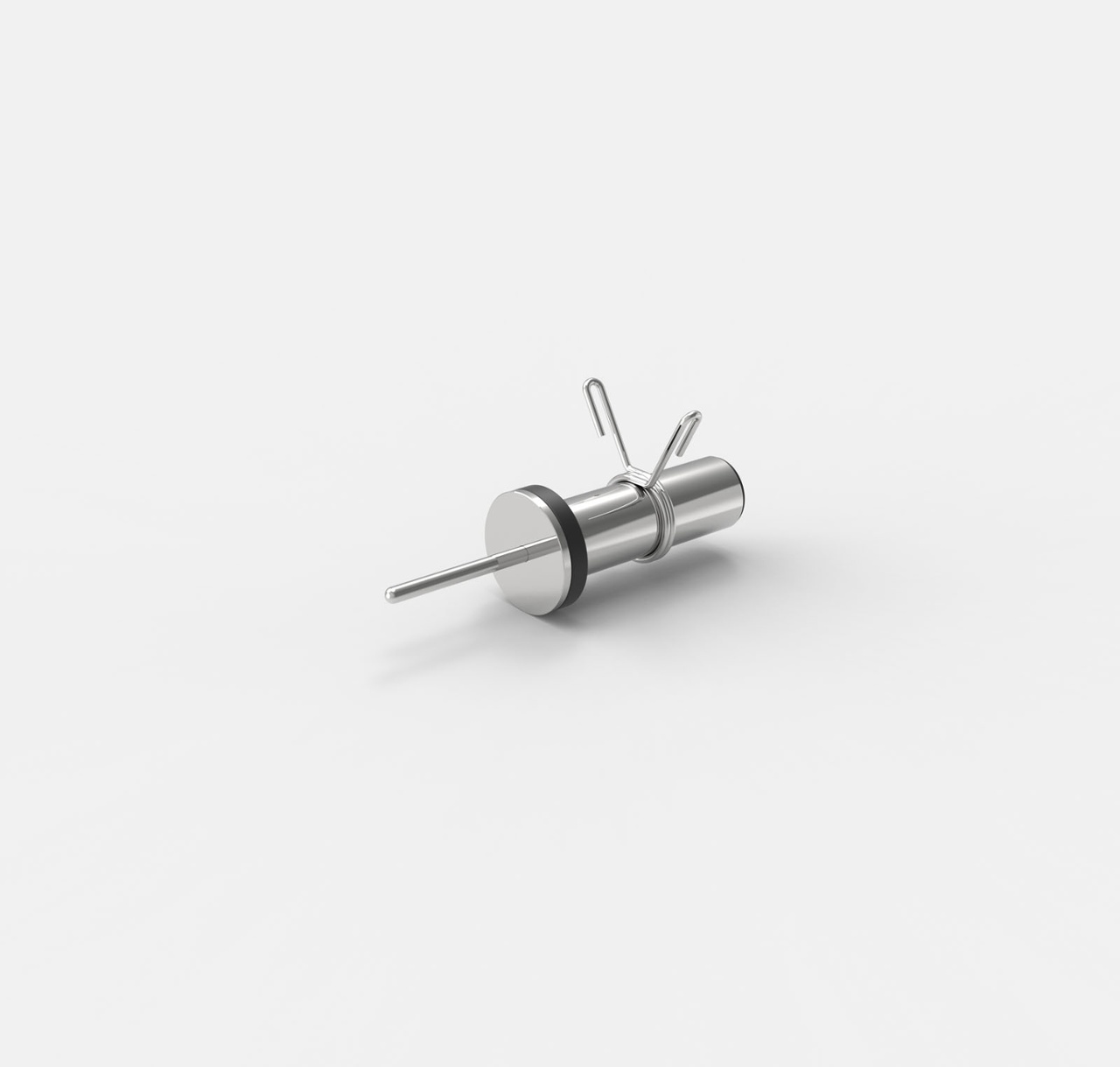

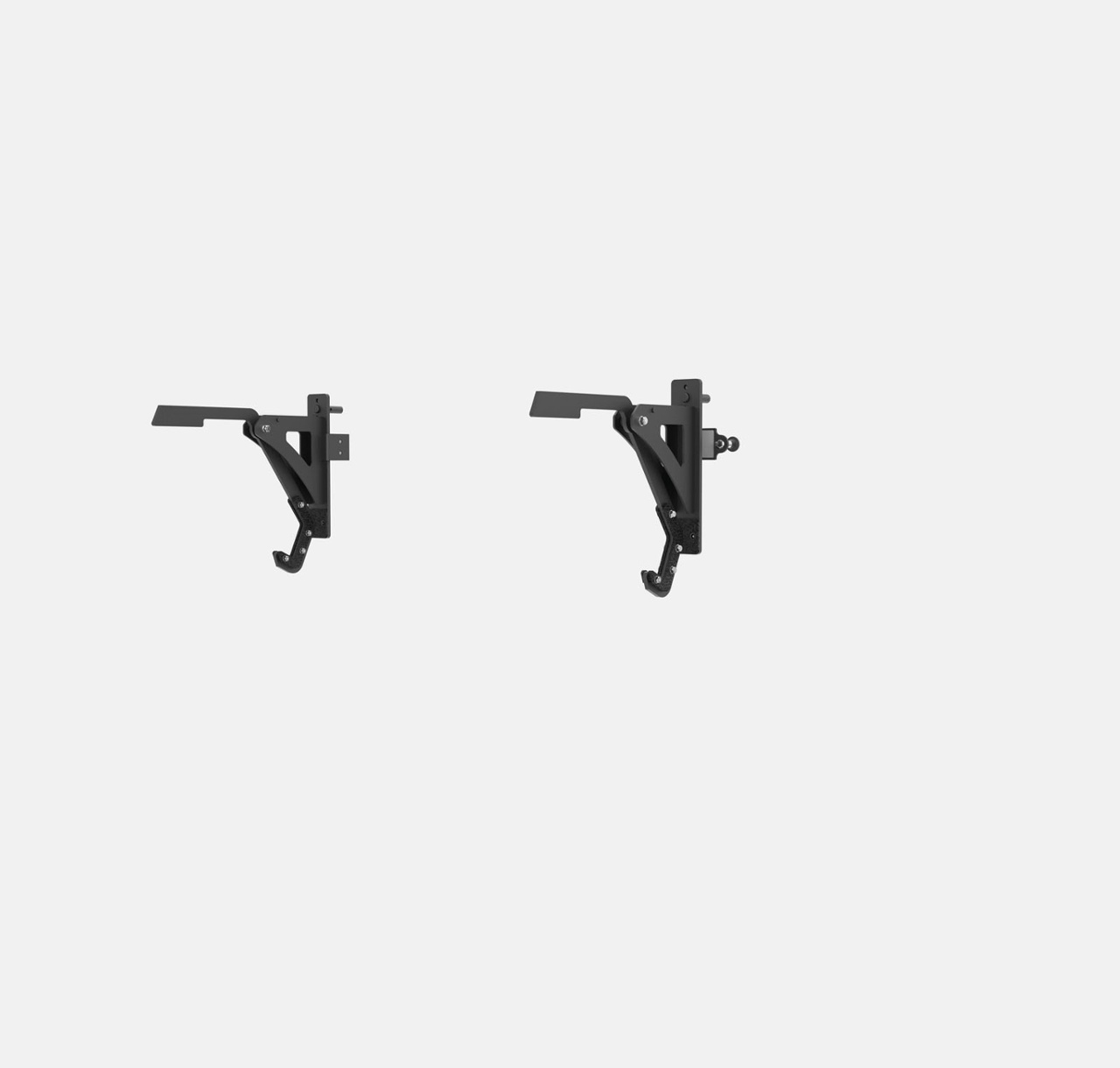

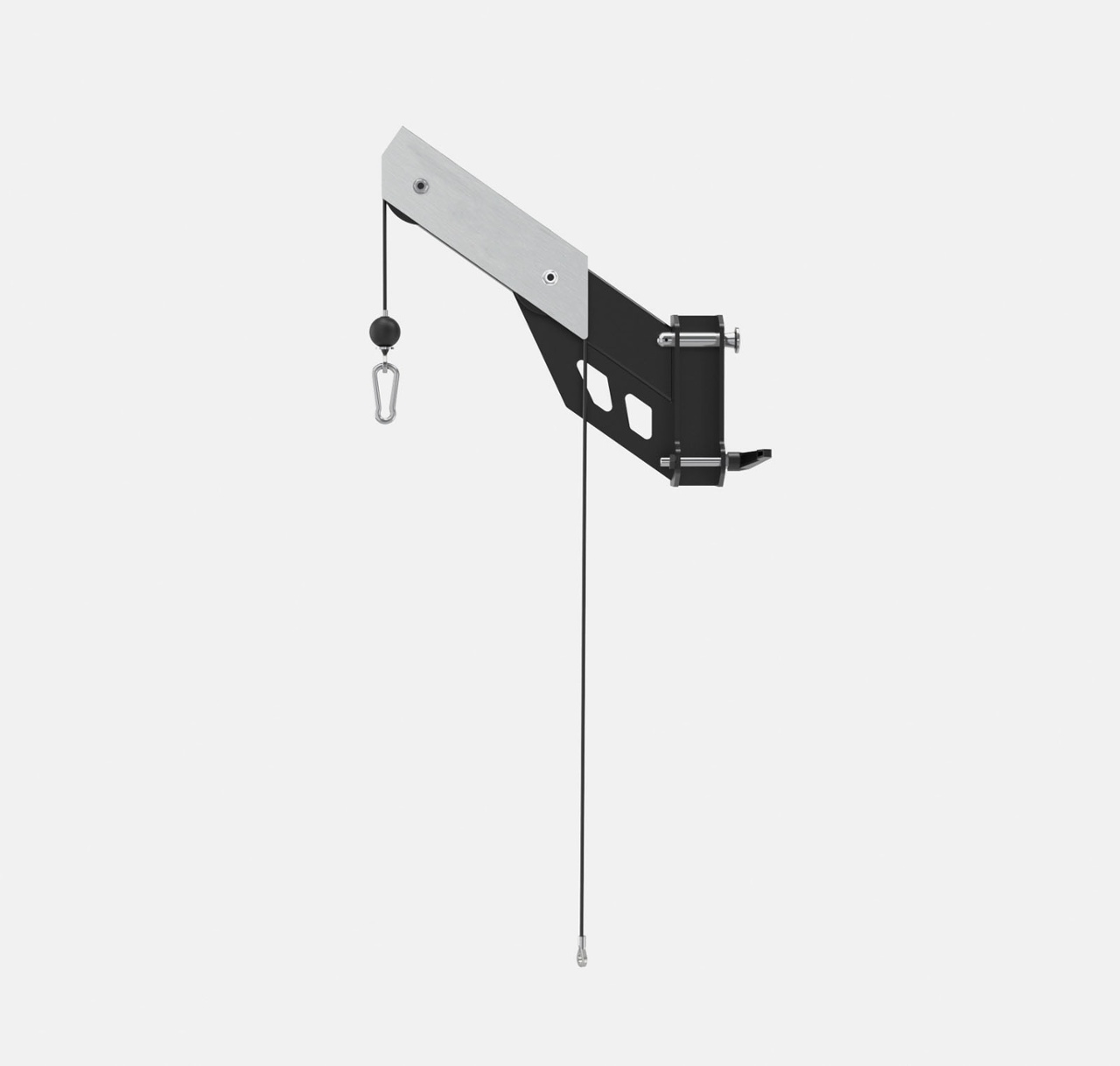

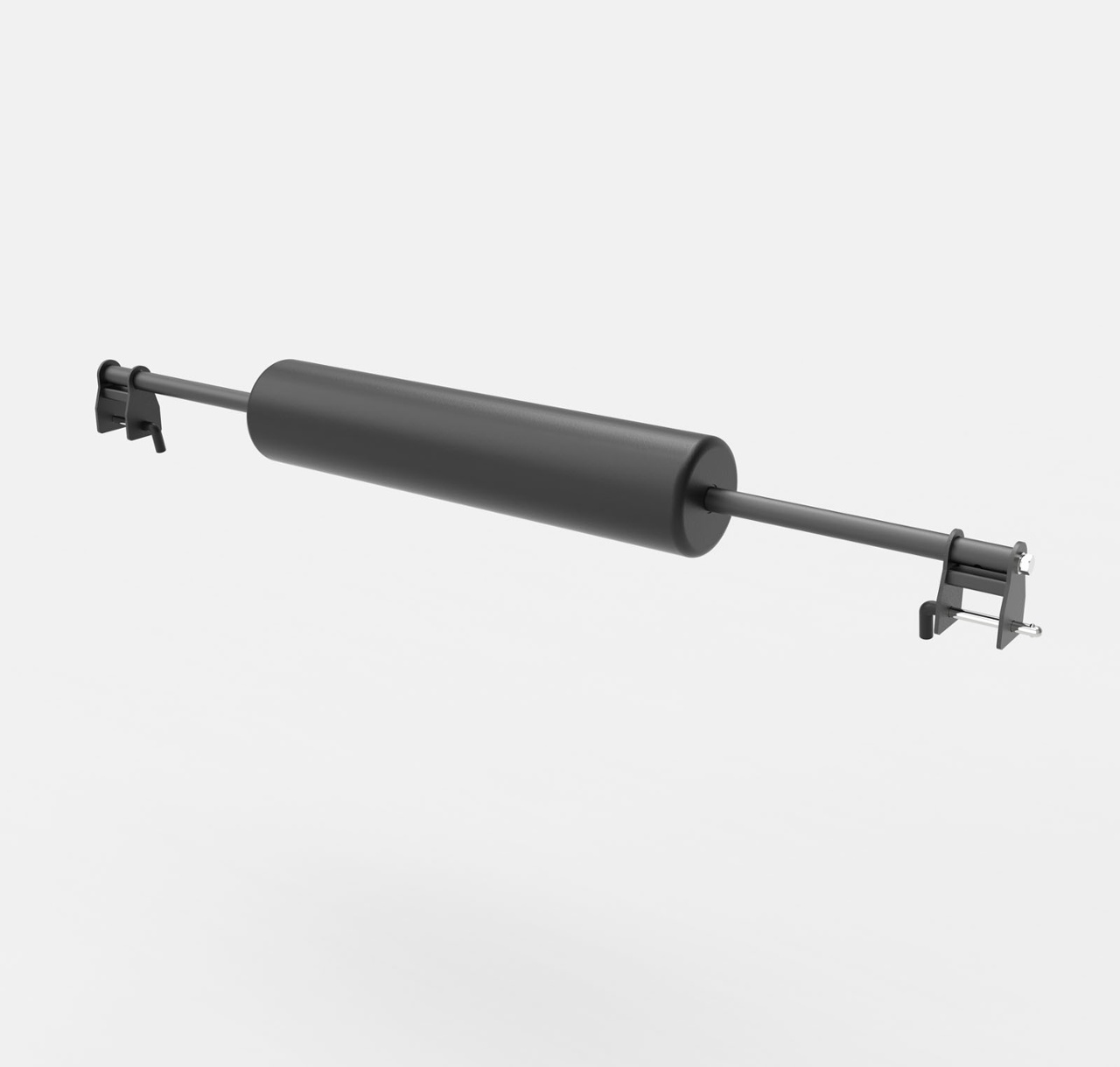

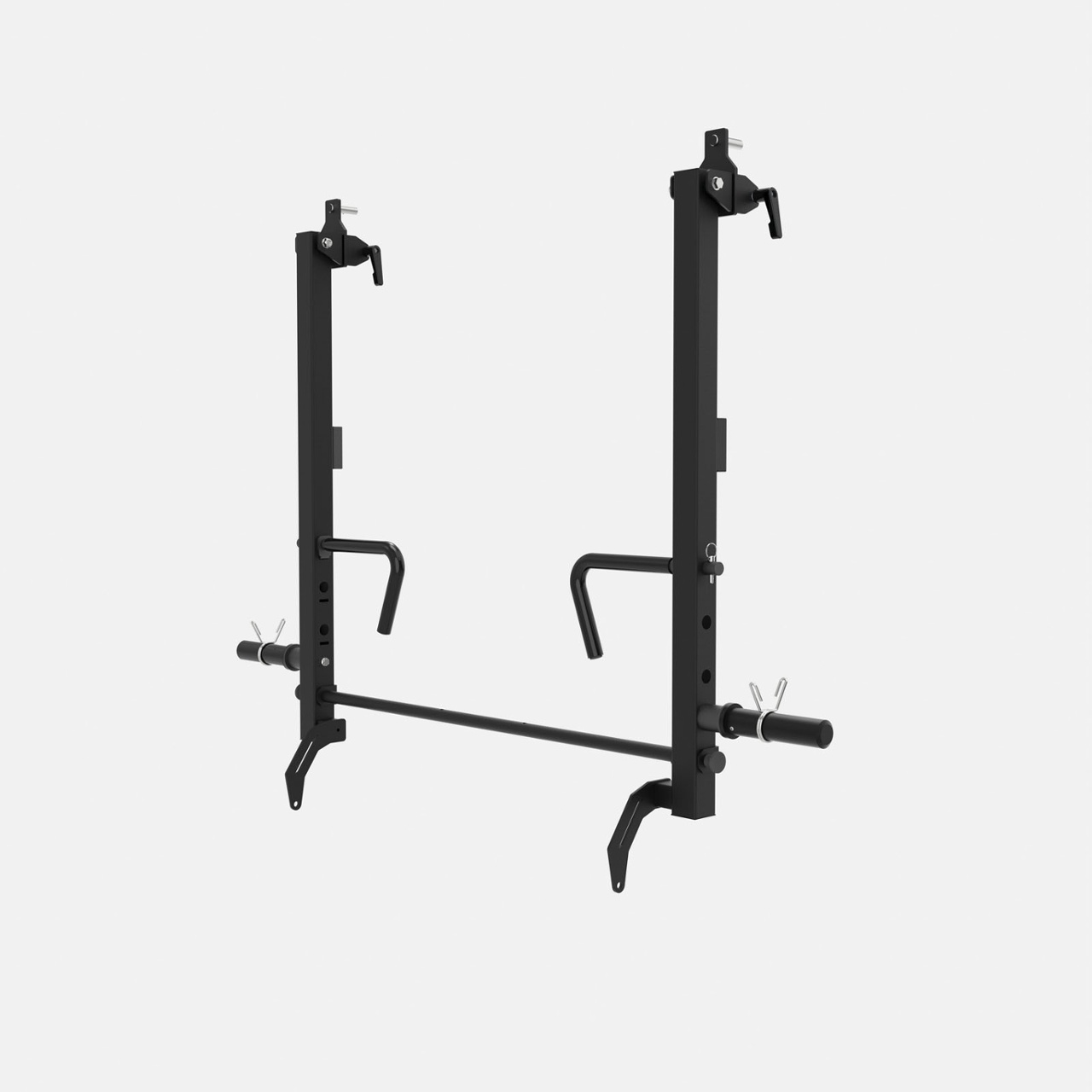

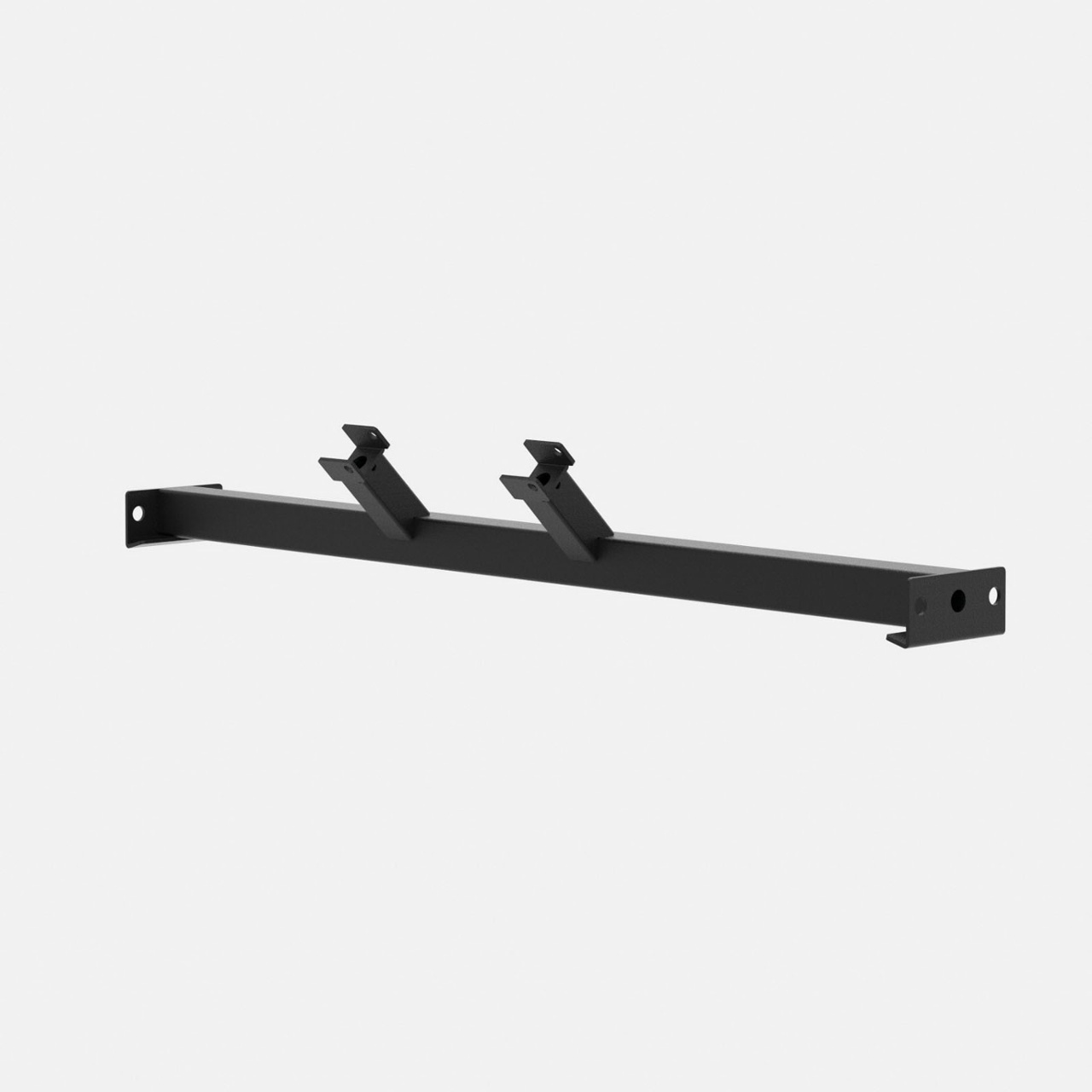

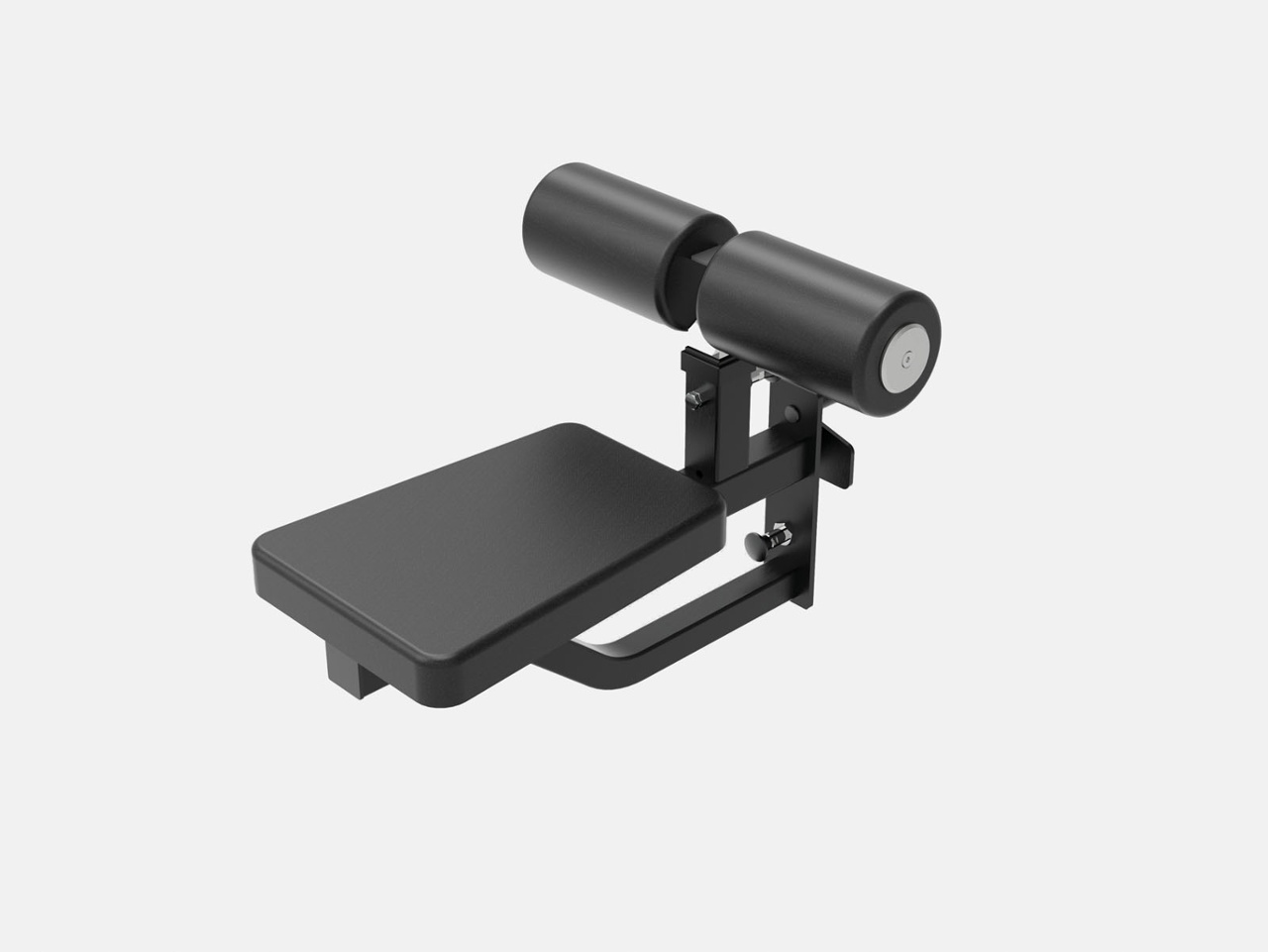

Features	2 x 90 kg steel weight stack with protective cover Ratio: 1 :1 & 1:2 / fly handle - 1:1 & 1:2 / lat pull down - 1:1 & 1:2 / seated rowing Adjustable PULLEY 321-1822 mm on 31 levels, center distance 50 mm J-CUP/SAFETY SPOTTER ARMS Extra strong 5 mm thick with UHMW (Ultra High Molecular Weight) protection. Adjustable 321-1822 mm on 31 levels, center distance 50 mm. BARBELL 2037 mm, sliding on linear ball bearings, 2 safety catches with adjustable hook, adjustable to 11 positions (353-1822 mm), 130 mm pitch. Disc holder diameter 50 mm. Equipment: 3-IN-1dual pulley, Smith machine, rack. 2 J-hooks, pair of barbell safety catches, pull-up bar, parallel bars, barbell holder, 6 ø50 mm and 25 mm disc holders, 8 ø49 mm spring-loaded disc catches. Attachments: ankle strap, double triceps rope, chain, landmine, 2 pull-up handles, non-slip platform, double handle, triceps bar, barbell and CURL barbell. OPTIONAL COD. ARMSASX4500 Jammer arms COD. LAT-SEATASX-4.5-6 Lat seat CODE LEG-PRESSASX Leg press CODE W-HOLDERASX Weight holder pin CODE M-BARASX Multifunctional bar COD.LPDASX-4.5-6 Lat pull down CODE MLIFTASX-4.5-6 Monolift COD. LP-SUPPORTASX4500 Leg press support
Frame
Frame	rectangular section 50x70 mm - thickness 2.5 mm
Product weight
Product weight	363.2 kg
Product Dimensions
Product Dimensions	2035 x 1730 x 2130 mm
Packaged product weight
Packaged product weight	381.8 kg
Packaging dimensions
Packaging dimensions	A: 1720x305x180 B: 2120x300x180 C: 1370x395x230 D: 1220x445x190 E: 560x525x190 F: ∅92x2125 G: 745x585x160 H: 375x220x125 I: 375x220x125 L: 375x220x125 M: 375X195X125 N: 375X195X125
EAN
EAN	8029975806242
