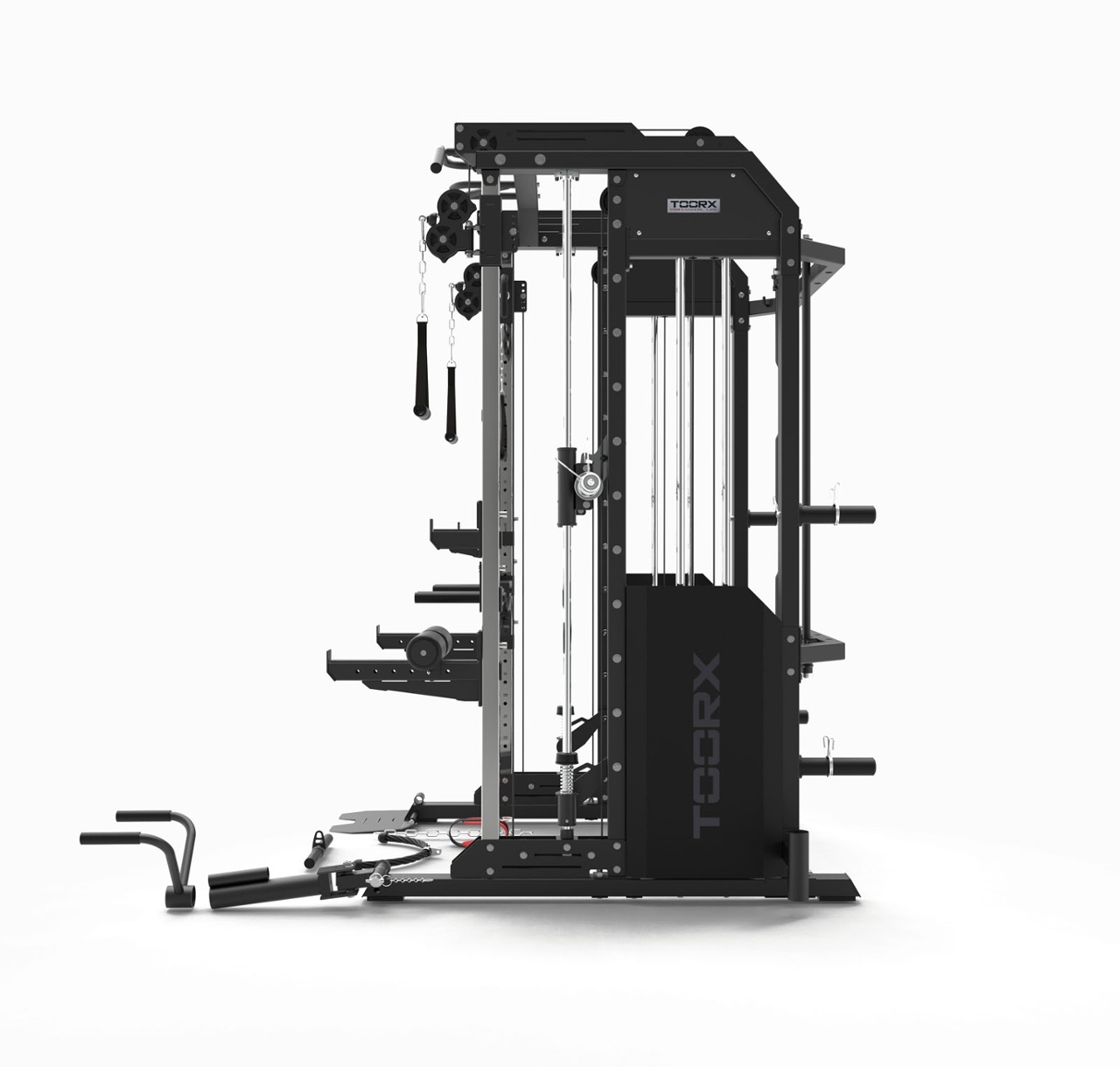

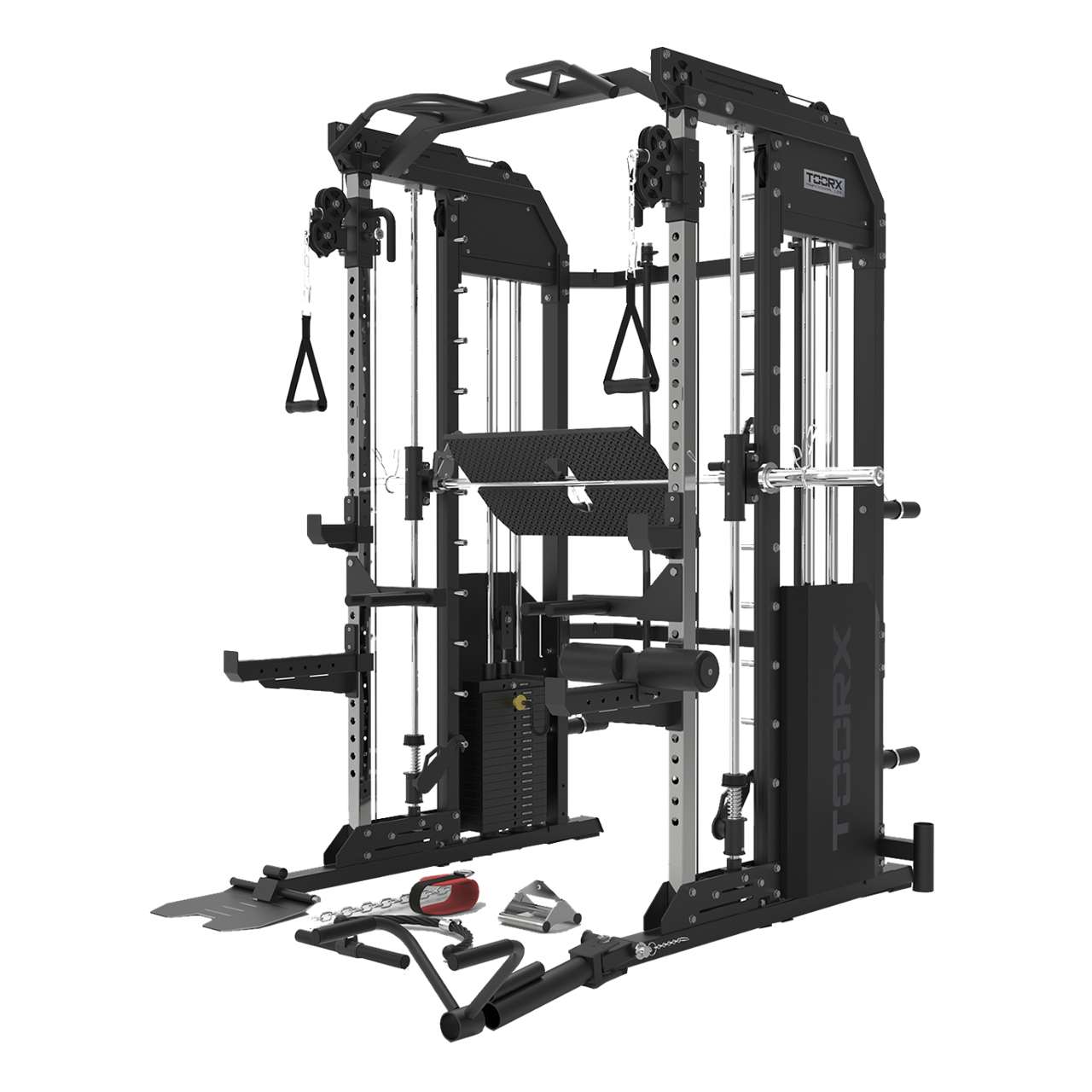

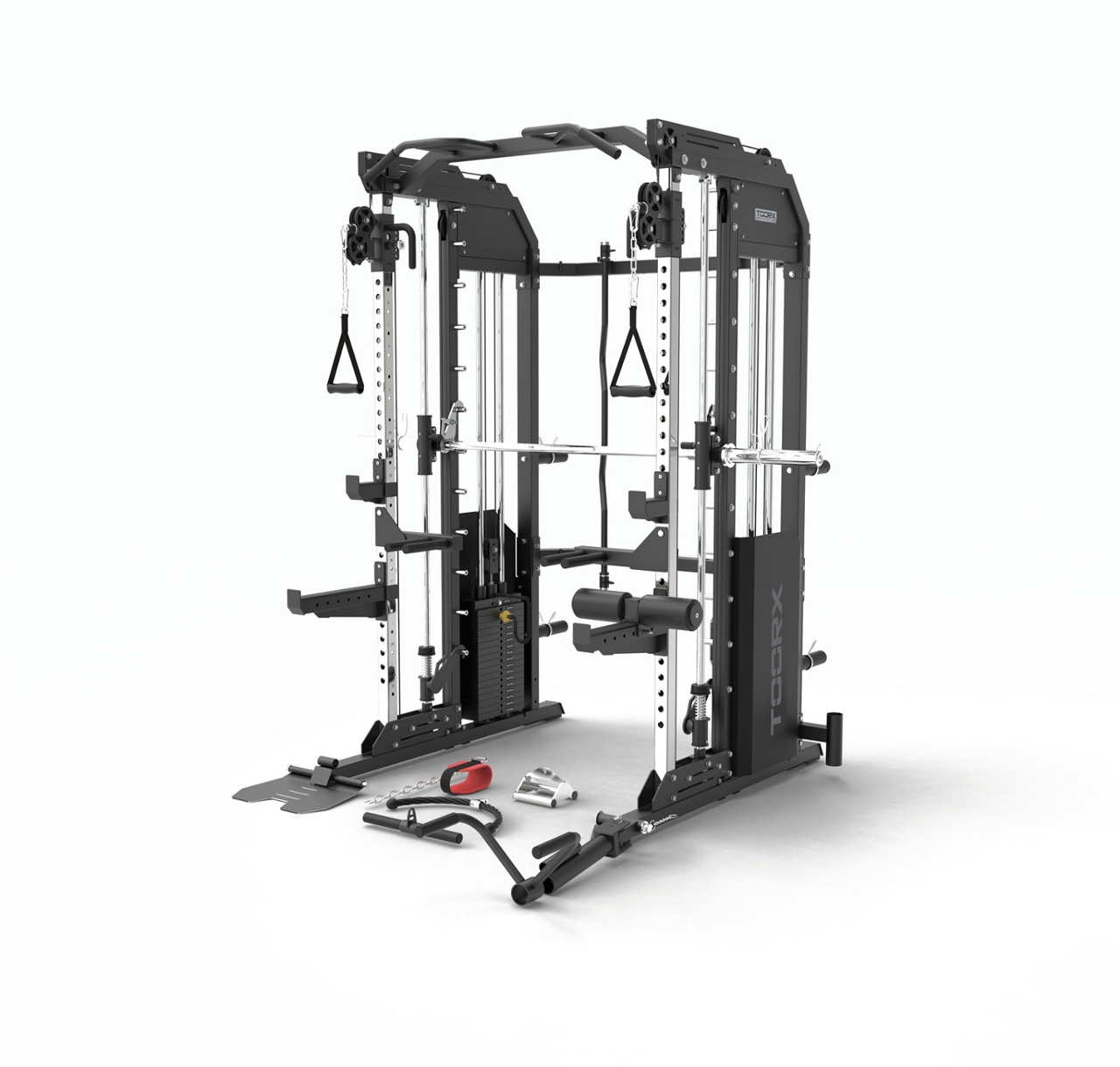

all in one: ASX-5000; 3-IN-1 dual pulley, Smith machine, rack; code ASX-5000

KEY POINTS
ALL IN ONE dual pulley, smith machine, rack.

WEIGHT PACKAGE
2 x 90 kg with protective casing

MAXIMUM USER WEIGHT
135 kg

BARBELL

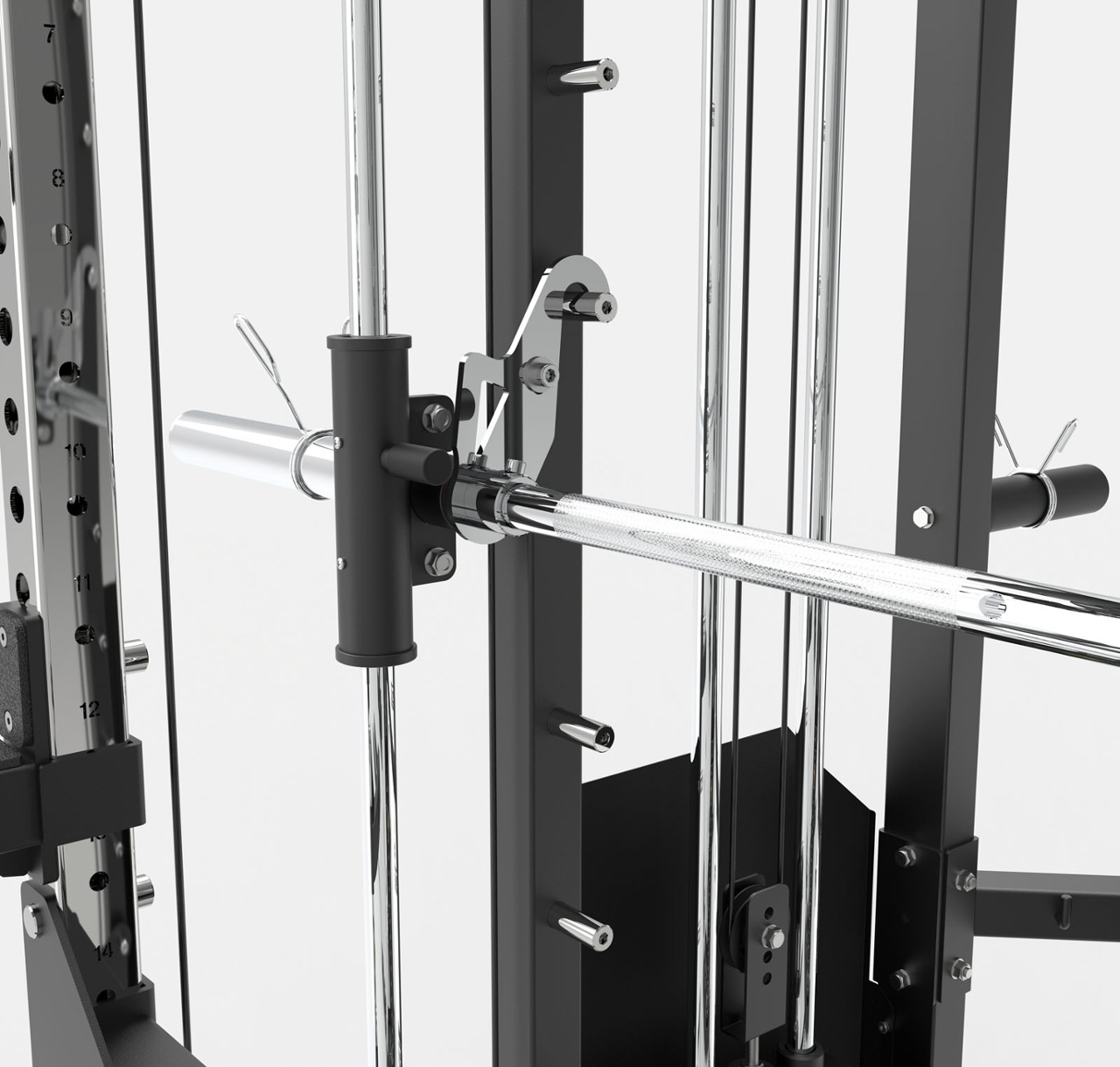

1944 mm, ball bearing slide, 2 safety catches with adjustable hook, adjustable to 11 positions (539 - 1861 mm), 150 mm pitch. Disc holder diameter 50 mm. Patented system for attaching the rocker arm to the weight stacks.

EQUIPMENT

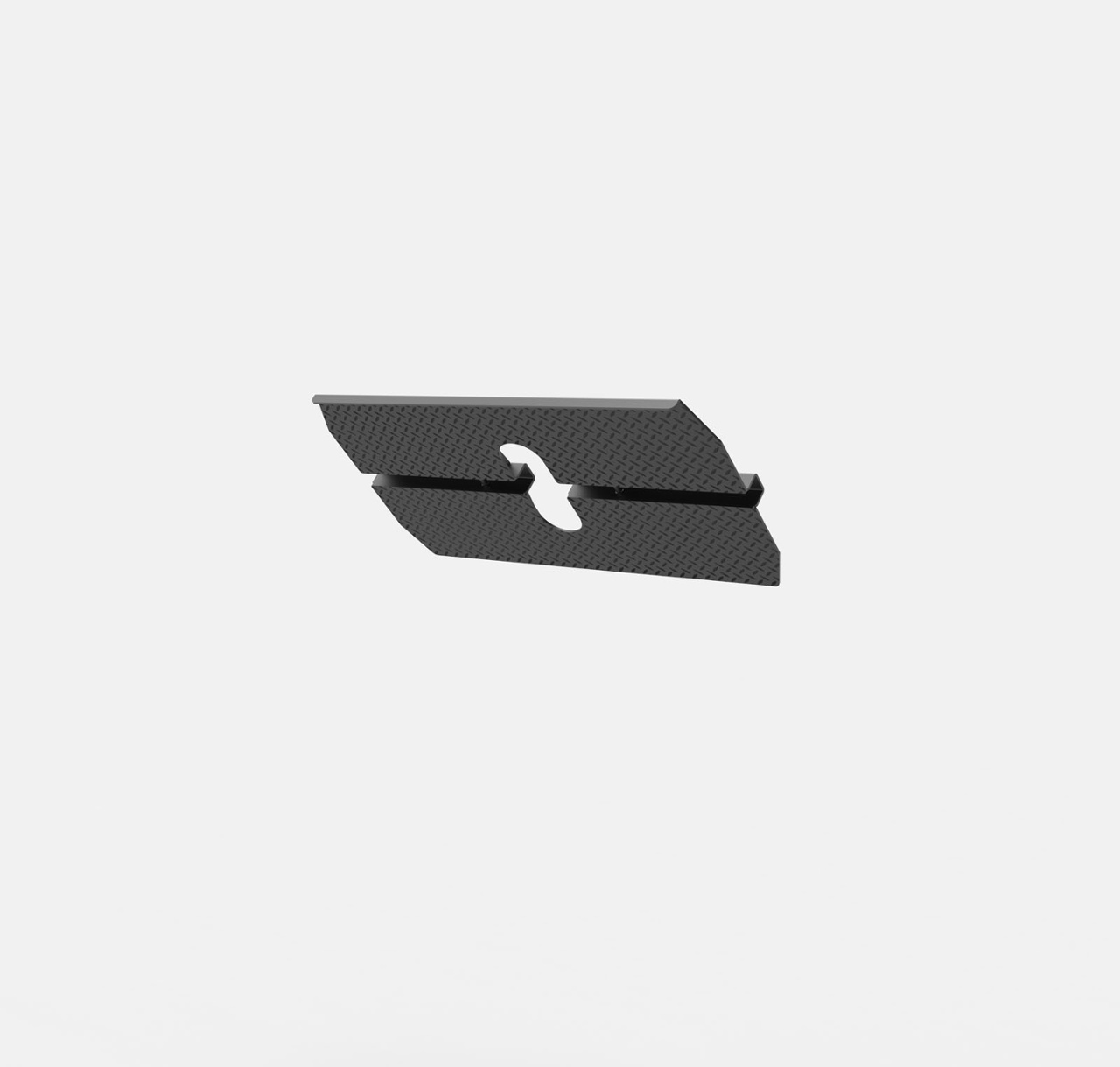

2 J-hooks, pair of safety catches for barbell with foam leg rollers, multi-grip pull-up bar, parallel bars, barbell holder, 4 ø50 mm disc holders, 4 ø49 mm spring-loaded disc holders, 2 ø47 mm disc holders. Attachments: ankle strap, rope, chain, landmine, 2 pull-up handles with adjustable chain, triceps bar, straight triceps bar, barbell and curl barbell, non-slip platform.

J-CUP/SAFETY SPOTTER ARMS
Extra strong, 5 mm thick with UHMW (Ultra High Molecular Weight) protection. Adjustable from 316 to 1816 mm in 31 levels, 50 mm center distance.

Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!

Images and data in the catalog and on the website's product pages may differ in some details from the originals

COMPARE

Technical specifications

Product code
Product code	ASX-5000
Maximum user weight
Maximum user weight	135 kg
Usage
Usage	PROFESSIONAL
Features

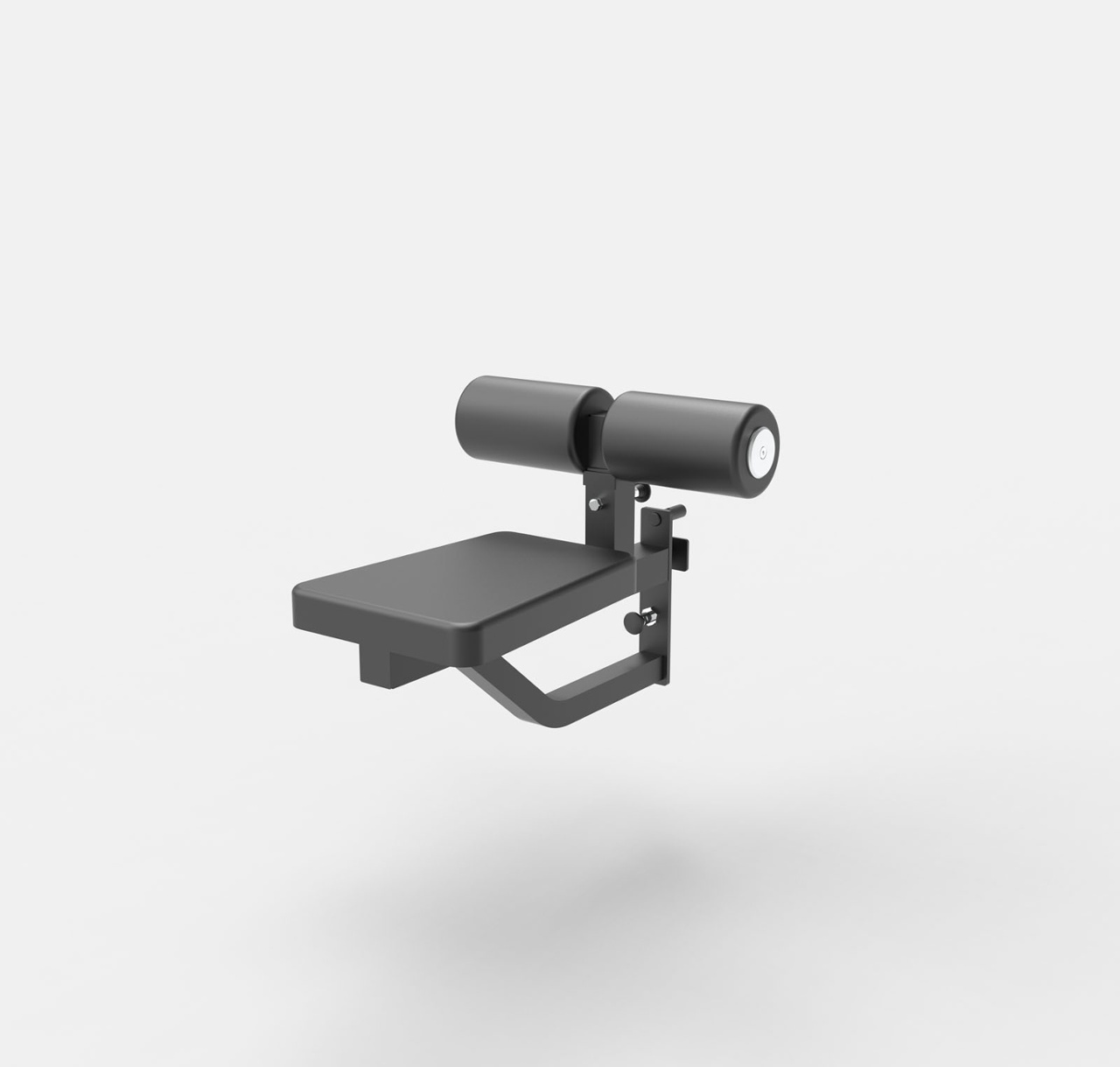

Features	2x90 kg steel weight stack with protective cover RATIO: 1 :1 / Smith bar - 1:2 / Fly handle - 1:2 / Lat pull down - 1:2 / Seated rowing Adjustable PULLEY 266x1841 mm on 22 levels, center distance 75 mm J-CUP/SAFETY SPOTTER ARMS Extra strong 5 mm thick with UHMW (Ultra High Molecular Weight) protection. Adjustable 316-1816 mm on 31 levels, center distance 50 mm. 1944 mm BARBELL, ball bearing slide, 2 safety catches with adjustable hook, adjustable to 11 positions (539 - 1861 mm), 150 mm pitch. 50 mm disc holder diameter. Patented system for attaching the barbell to the weight stacks. Equipment:3-IN-1 dual pulley, Smith machine, rack. 2 J-hooks, pair of safety catches for barbell with foam leg rollers, multi-grip pull-up bar, parallel bars, barbell holder, 4 ø50 mm disc holders, 4 ø49 mm spring-loaded disc holders, 2 ø47 mm disc holders. Attachments: ankle strap, rope, chain, landmine, 2 pull-up handles with adjustable chain, triceps bar, straight triceps bar, barbell and curl barbell, non-slip platform. OPTIONAL CODE J-ARMSASX5000 Jammer arms for ASX-5000 CODE LAT-SEATASX5000 Lat seat for ASX-5000 CODE LEG-PRESS4-5 Leg press for ASX-4000 and ASX-5000 CODE W-HOLDERASX5000 Weight holder pin for ASX-5000 CODE M-BARASX5000 Multifunctional bar for ASX-5000
Frame
Frame	rectangular section 50x70 mm - thickness 2.5 mm/2 mm and square section 50x50 mm - thickness 2 mm
Product weight
Product weight	391.5 kg
Product Dimensions
Product Dimensions	1944 x 1670 x 2170 mm
Packaged product weight
Packaged product weight	410.5 kg
Packaging dimensions
Packaging dimensions	A: 2090x275x170 B: 1470x300x140 C: 1420x385x240 D: 1120x415x185 E: 925x515x100 F: 540x545x215 G: 92x2100 H：340x205x135 I：340x205x135 J：340x205x135 K：340x180x135 L: 340x180x135 M: 340x180x135 N: 340x180x135 O: 340x180x135
Certifications
Certifications	EN20957-1 / EN957-2 / EN957-4 class S
EAN
EAN	8029975805870
