all in one
ASX-8000
NEW ARRIVALS
3-IN-1 dual pulley, Smith machine, rack
code ASX-8000
ASX-8000
  • KEY POINTS
  •  PULLEY
    adjustable 312-1862 mm in 31 levels, center distance 50 mm
     MAXIMUM USER WEIGHT
    160 Kg
     RATIO
    1:1 / Smith bar - 2:1 / Dual pulley - 2:1 / Lat pull down
     BARBELL
    1996 mm, ultra-smooth linear bearing slide for Smith rocker guide, 2 safety hooks, vertically adjustable to 11 levels (537-1837 mm), 130 mm pitch, minimum height 407 mm from the ground (on safety hooks). Disc holder diameter 50 mm.
     EQUIPMENT

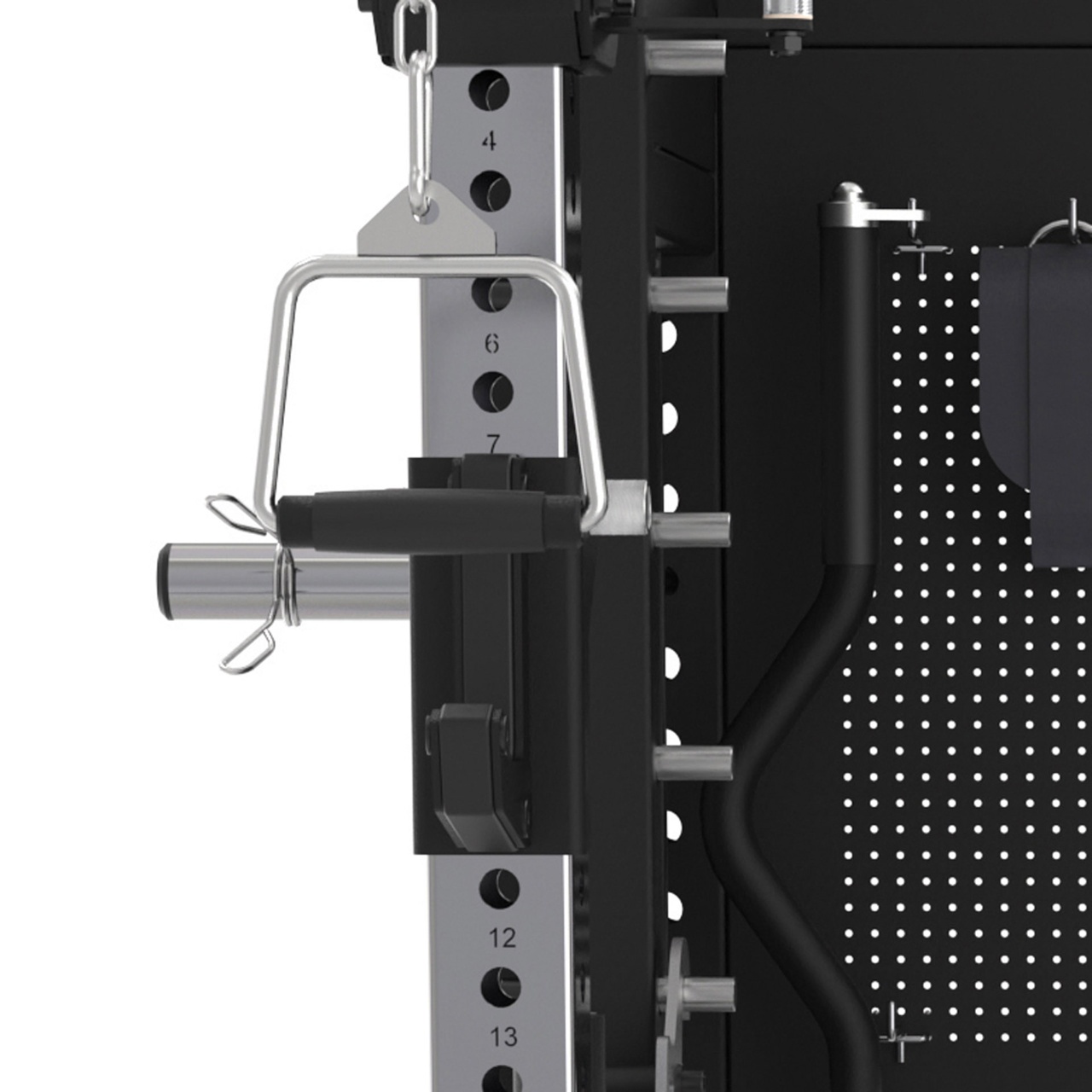

    Ultra-smooth plastic pulley, 2 J-hooks, pair of safety catches for barbell, multi-grip pull-up bar, barbell holder, 4 disc holders ø50 mm, 6 spring-loaded disc holders ø49 mm. Attachments: ankle strap, double triceps rope, chain, 2 pull-up handles, double handle, triceps bar, barbell and curl bar, low row platform (optional)

    ASX8000 all-in-one station at the top of the Toorx range, suitable for particularly heavy use in a fully commercial setting, the ASX 8000 combines the functions of three separate machines in a single station, namely: a) Dual Pulley (equipped with two 90 kg weight stacks) b) Smith machine c) Functional rack equipped with barbell supports, safety supports, and pull-up bar In addition to being equipped with numerous accessories as standard, this exclusive all-in-one machine can be equipped with numerous extremely interesting optional attachments, including those that allow for lat machine and pulley functions, with a special dual-function bench, ensuring unparalleled completeness of use, together with unmatched space savings and flexibility.

Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!
Images and data in the catalog and on the website's product pages may differ in some details from the originals
loading ... COMPARE COMPARE NOW

Technical specifications

Product code
Product codeASX-8000
Maximum user weight
Maximum user weight120 kg
Features
Features

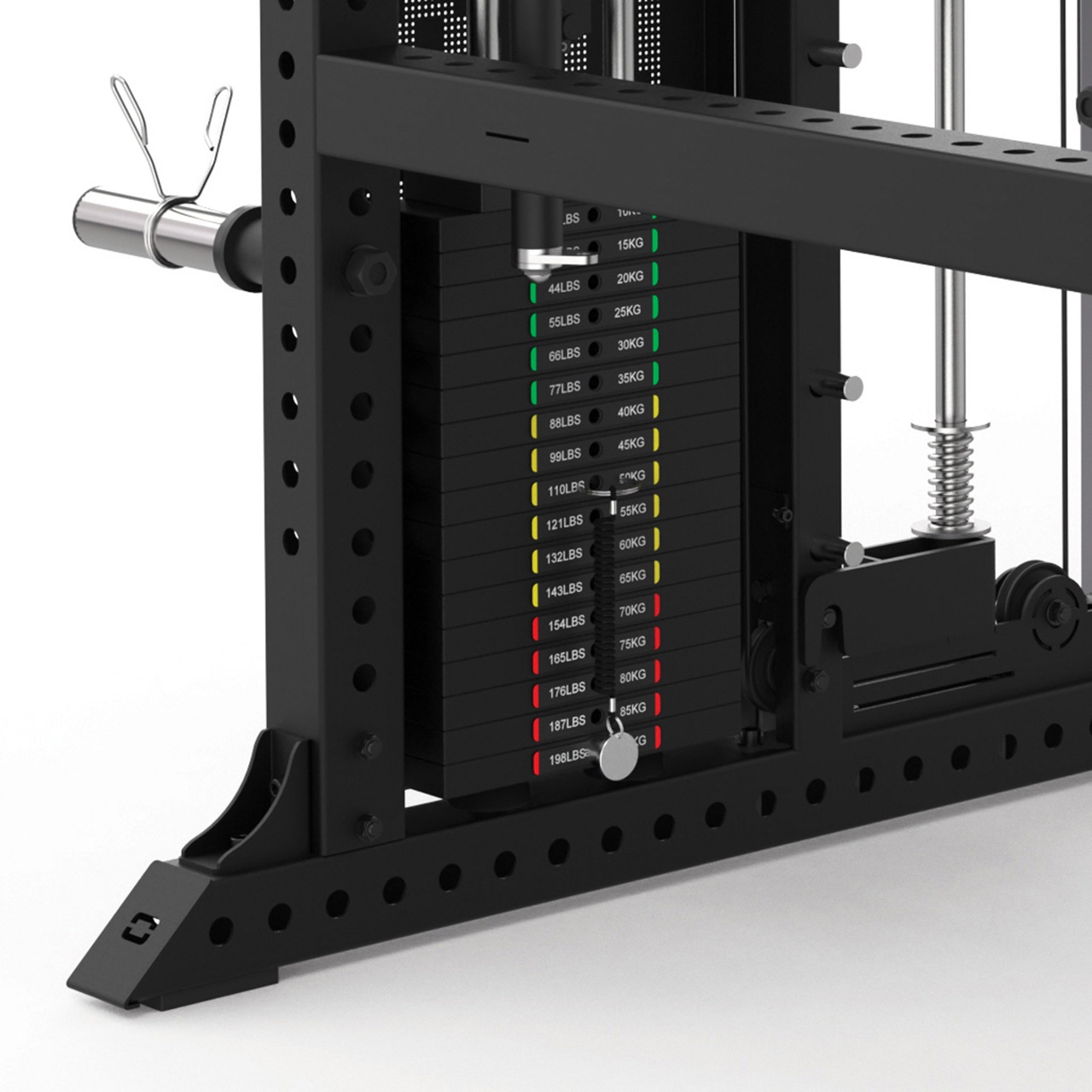

  • 2x90 kg steel weight set
  • Adjustable PULLEY 312-1862 mm on 31 levels, center distance 50 mm
  • Ratio: 1:1 / Smith bar - 2:1 / Dual pulley - 2:1 / Lat pull down
  • Barbell: 1996 mm, ultra-smooth linear bearing slide for Smith barbell guide, 2 safety catches with hooks, vertically adjustable to 11 levels (537-1837 mm), 130 mm pitch, minimum height 407 mm from the ground (on safety hooks). 50 mm disc holder diameter.
  • Equipment: ultra-smoothplastic pulley, 2 J-hooks, pair of safety catches for barbell, multi-grip pull-up bar, barbell holder, 4 disc holders ø50 mm, 6 spring-loaded disc holders ø49 mm.
  • Attachments: ankle strap, double triceps rope, chain, 2 pull-up handles, double handle, triceps bar, barbell and curl bar, low row platform (optional)

OPTIONAL

  • CODE D-HANDLEASX8-WLX38
    Parallel
  • CODE LR-FOOTPLATEASX-8

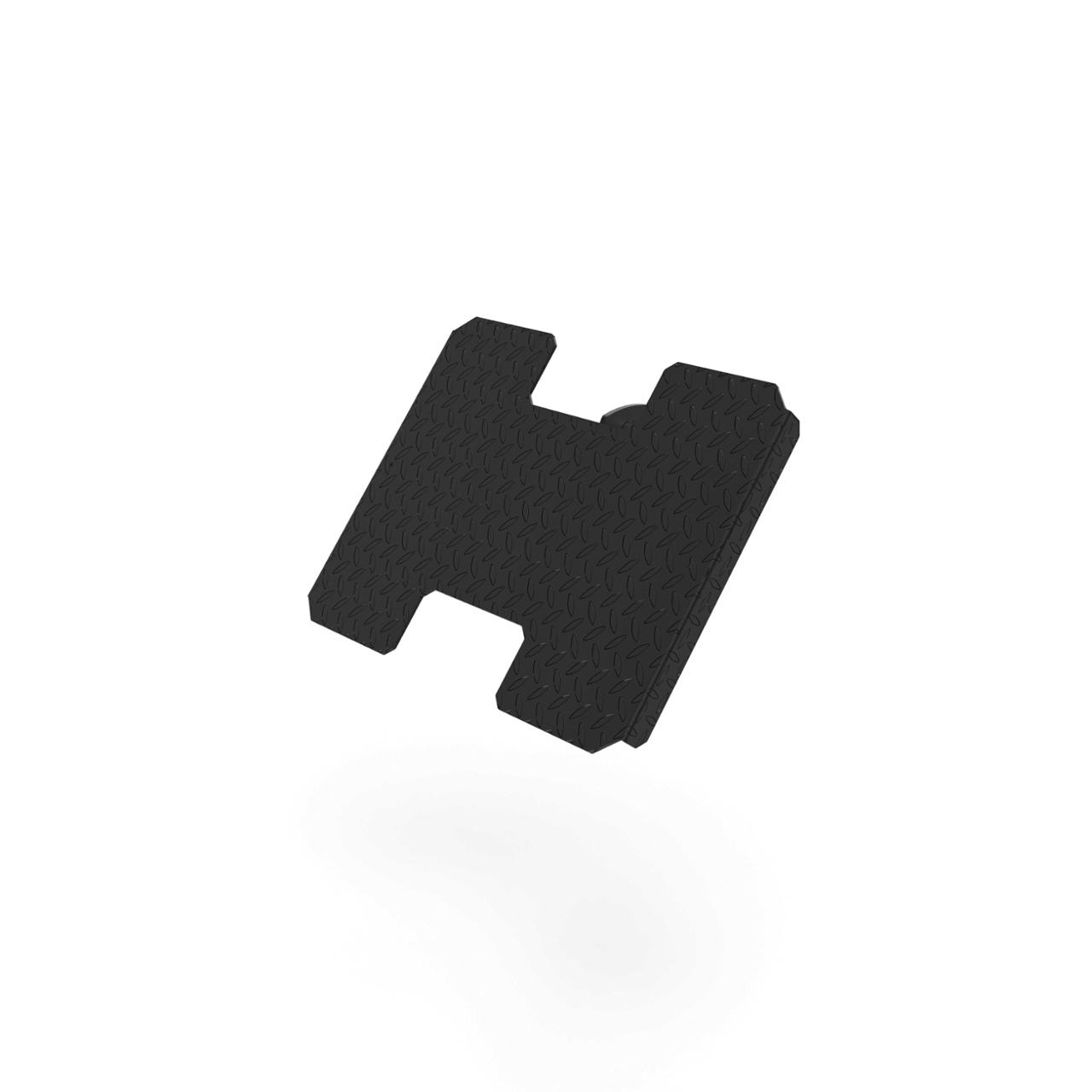

    Footplate for low row
  • COD. LPDASX-8

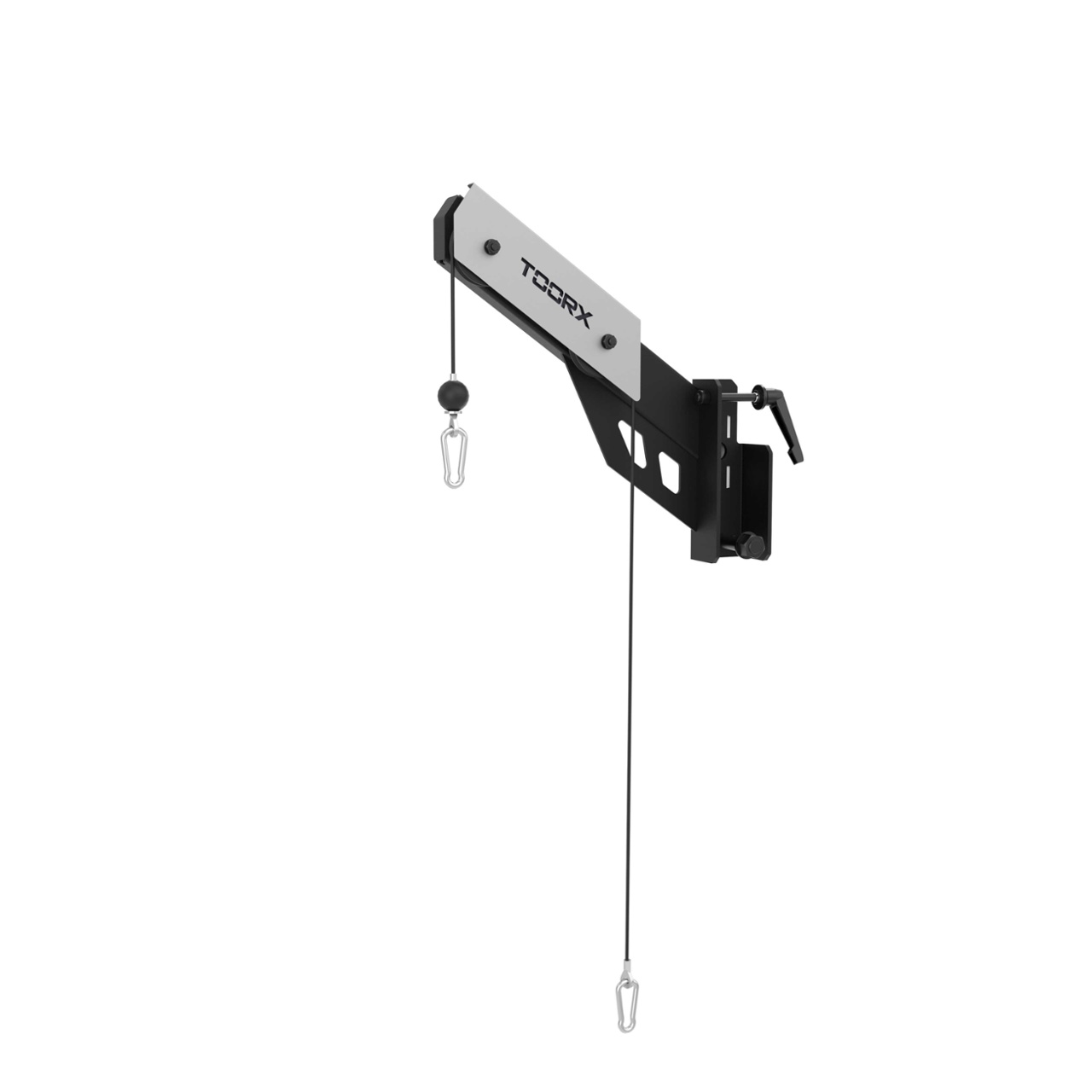

    Lat pull down
  • CODE LAT-SEATASX8
    Lat seat
  • COD. LMPBASX-8
    Lat machine/pulley seat
Frame
Framesquare section tubular 75x75 mm - thickness 3 mm
Product weight
Product weight470 kg
Product Dimensions
Product Dimensions1514 x 1996 x 2200 mm
Packaged product weight
Packaged product weight480 kg
Certifications
CertificationsEN20957-1 / EN957-2 class S
EAN
EAN8029975810393

#ASX-8000 gallery

Tag your photos and videos with #toorxvertical #perfectbalance and join the Toorx community!

OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL

PDF Manual

Download the instruction manual for your TOORX equipment in .PDF format.

» click here.
Available languages:

Technical data sheet PDF

Download the technical data sheet for your TOORX tool in PDF format.

» Click here.
