all in one
ASX-9000
NEW ARRIVALS
2-IN-1 dual pulley, 3D Smith machine

code ASX-9000

  • KEY POINTS
  •  PULLEY
    adjustable to 31 levels (194 mm-1594 mm)
     MAXIMUM USER WEIGHT
    120 kg
     RATIO
    Ratio: 1:2 pulley; 1:1 Smith bar; 1:2 lat pull down; 1:2 seated rowing
     BARBELL
    2090 mm, sliding on linear ball bearings; 2 safety devices with adjustable hook, adjustable to 10 positions (299 mm-1760 mm). Disc holder diameter 50 mm.
     EQUIPMENT
    2-IN-1 dual pulley, 3D Smith machine. Lat pulldown/seated rowing/chin-up bar. Attachments: barbell, triceps bar, biceps bar, 2 pull-up handles, 2 extra-long pull-up handles, double triceps rope, ankle strap.

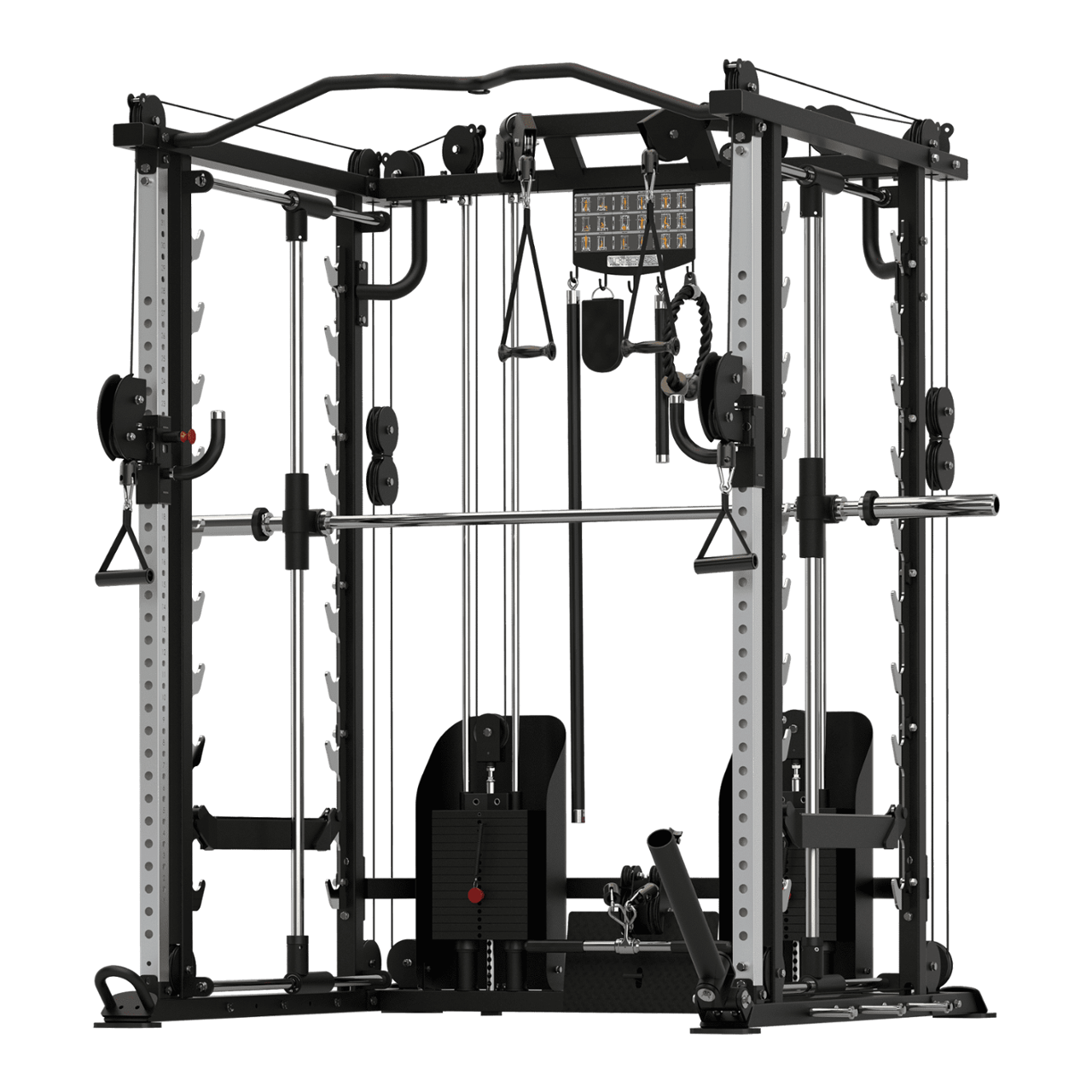

    ASX 9000: the All-in-One station ASX 9000, at the top of the Toorx Professional Line range, not only combines a functional rack and a dual pulley with weight stack (2 x 80 kg), but, unique on the market, it is equipped with a guided barbell which, unlike traditional Smith machines that only allow vertical movement, moves both vertically and horizontally, thus allowing any exercise to be performed naturally and freely. The so-called "3D Smith"technology guarantees the ASX 9000 unparalleled versatility and training effectiveness!


Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!
Images and data in the catalog and on the website's product pages may differ in some details from the originals

Technical specifications

Product code
Product codeASX-9000
Maximum user weight
Maximum user weight120 kg
Features
Features

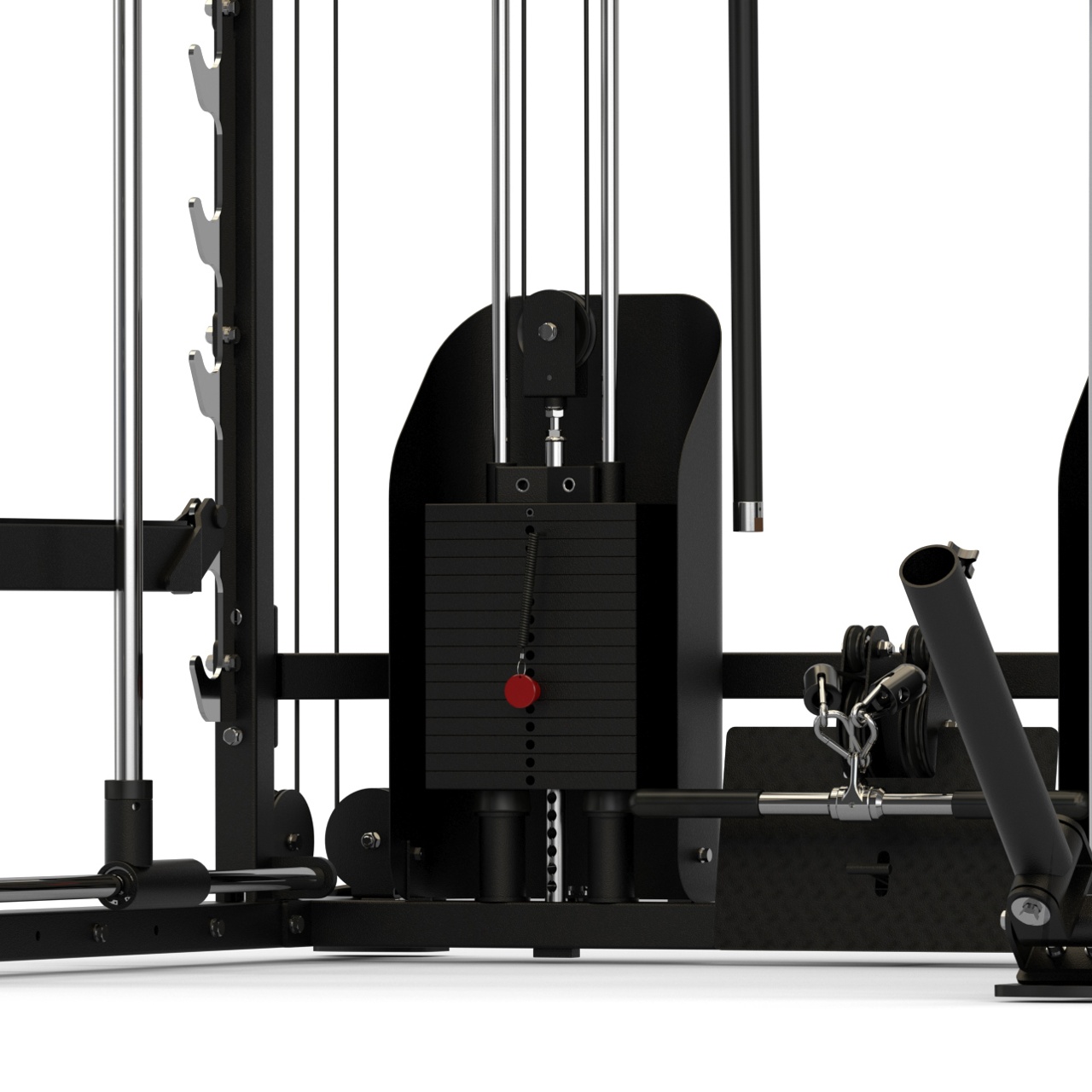

  • 2x80 kg steel weight stack with protective cover

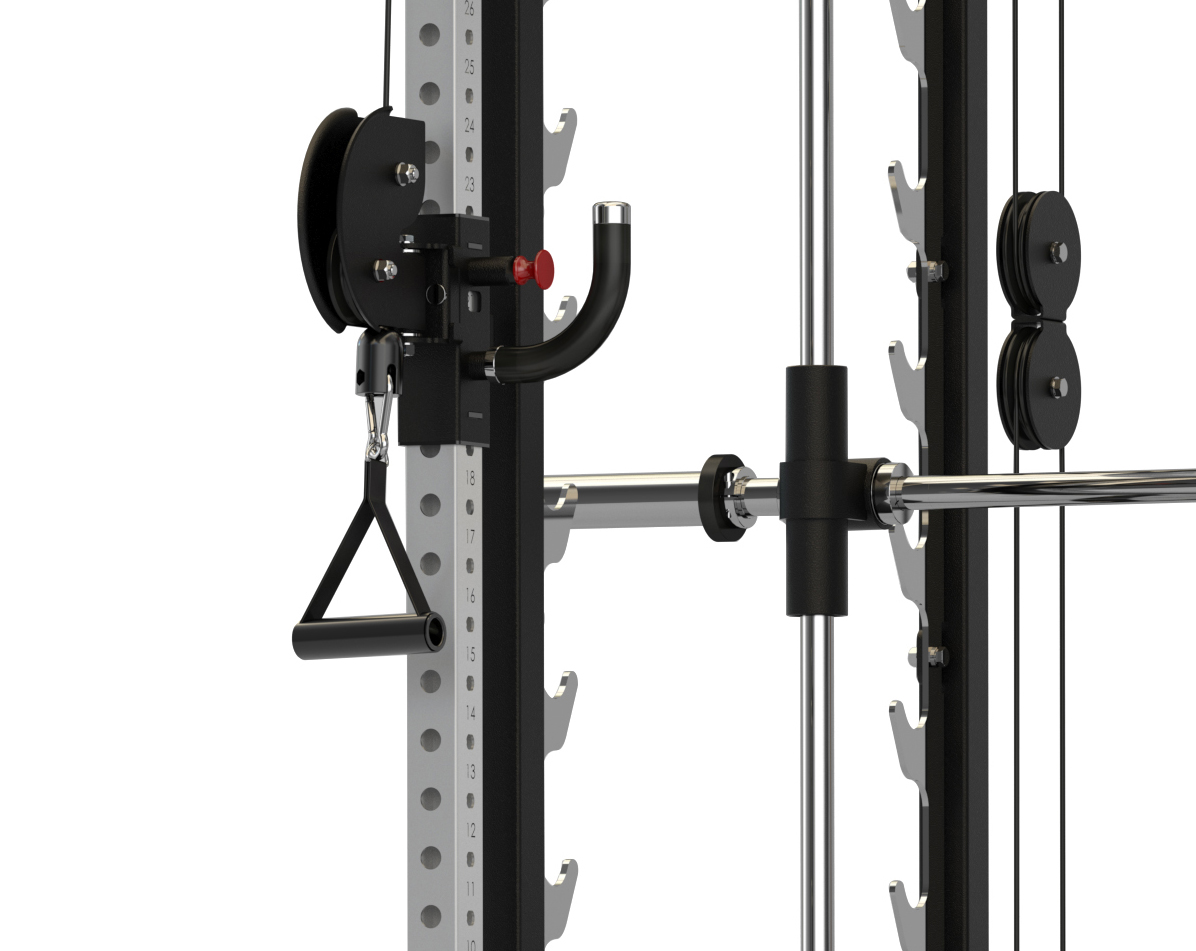

  • PULLEY adjustable to 31 levels (194 mm-1594 mm)
  • Barbell: 2090 mm, sliding on linear ball bearings; 2 safety catches with adjustable hooks, adjustable to 10 positions (299 mm-1760 mm). Disc holder diameter 50 mm.
  • Equipment: 2-IN-1dual pulley, 3D Smith machine. Lat pulldown/seated rowing/chin-up bar.
  • Attachments: barbell, triceps bar, biceps bar, 2 pull-up handles, 2 extra-long pull-up handles, double triceps rope, ankle strap
Frame
Framesquare section tubular 50x50 mm - thickness 2.5
Product weight
Product weight408 kg (including weight stack)
Product Dimensions
Product Dimensions2090 x 1654 x 2104 mm
Certifications
CertificationsEN20957-1 / EN957-2 class S
