all in one: ASX-9500; NEW

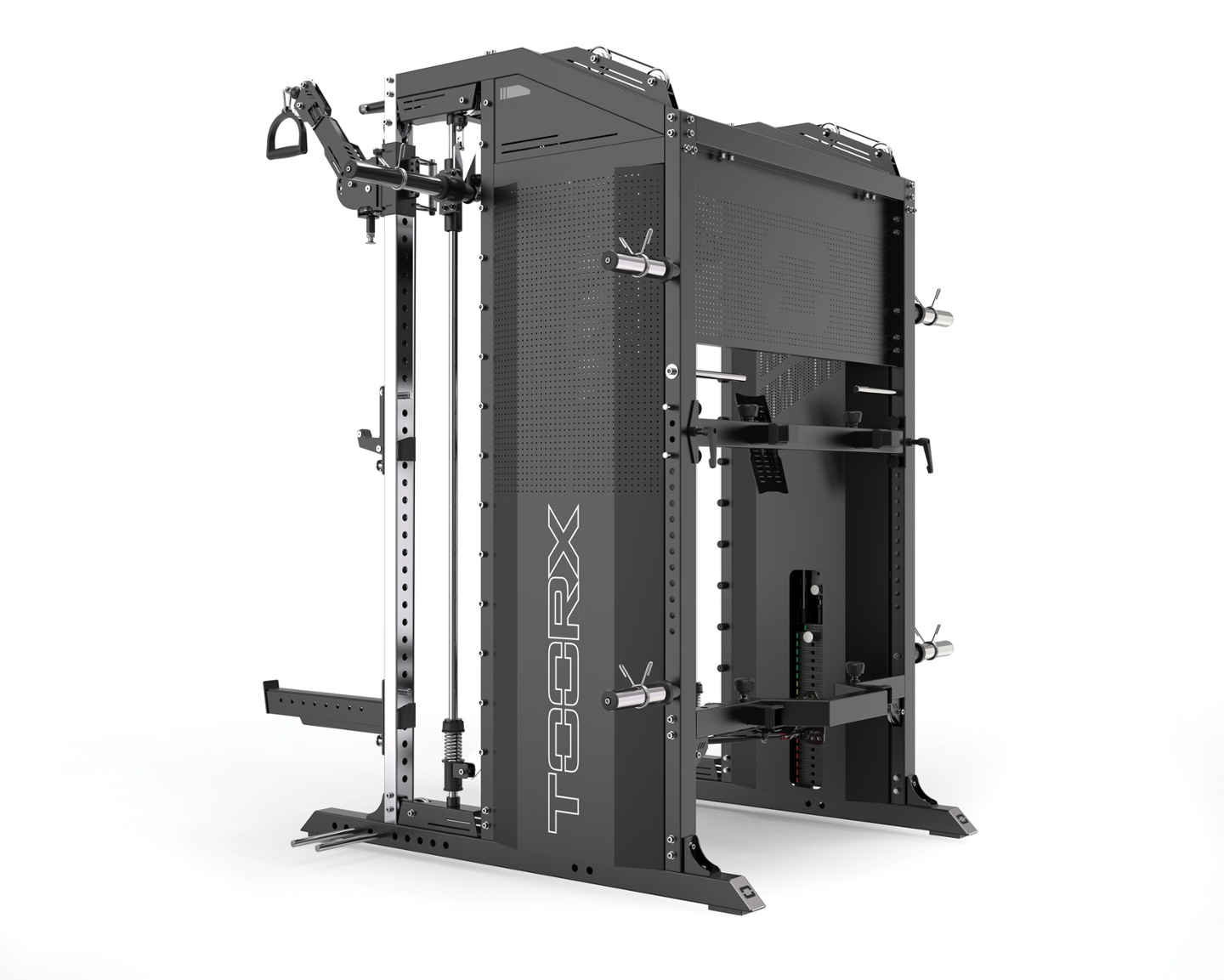

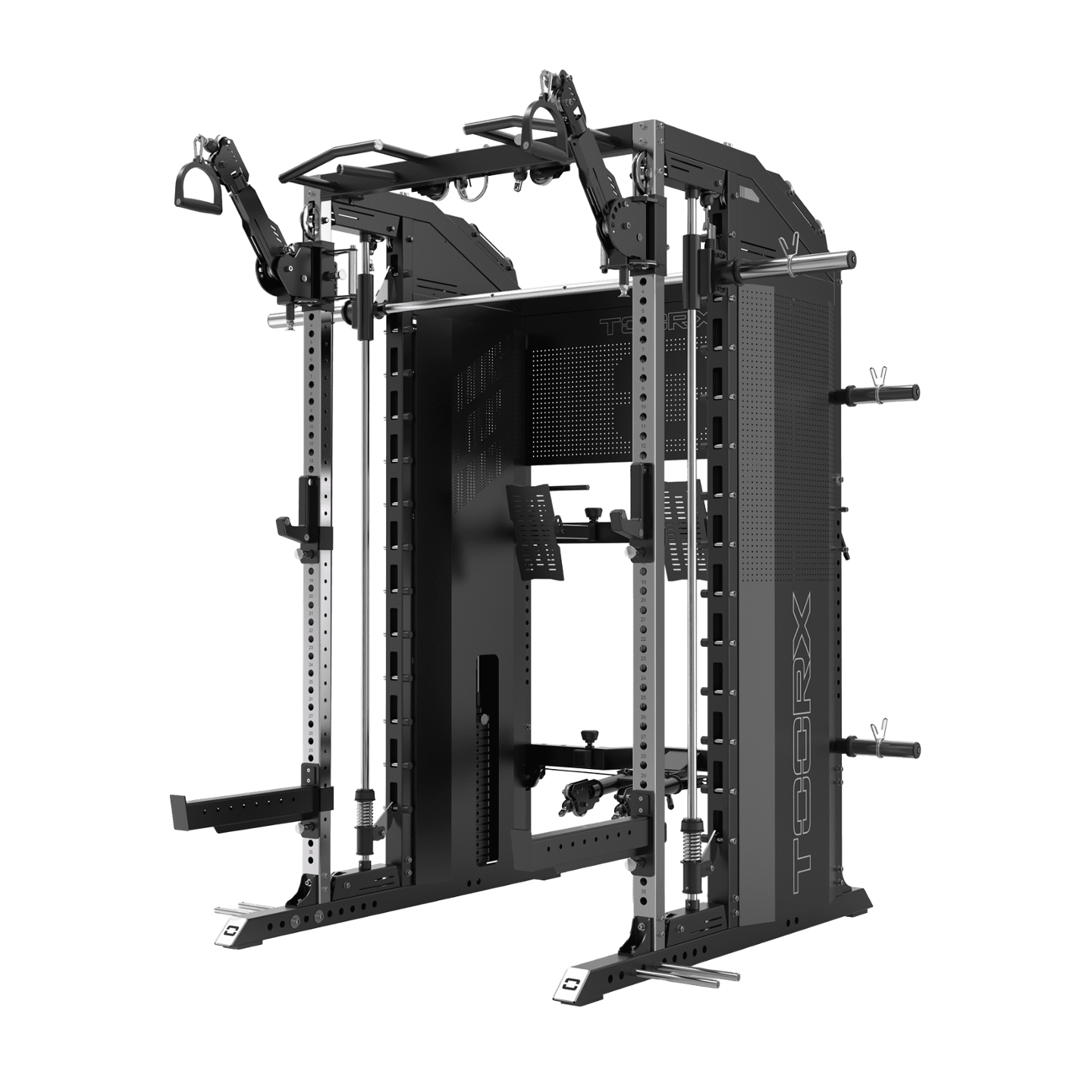

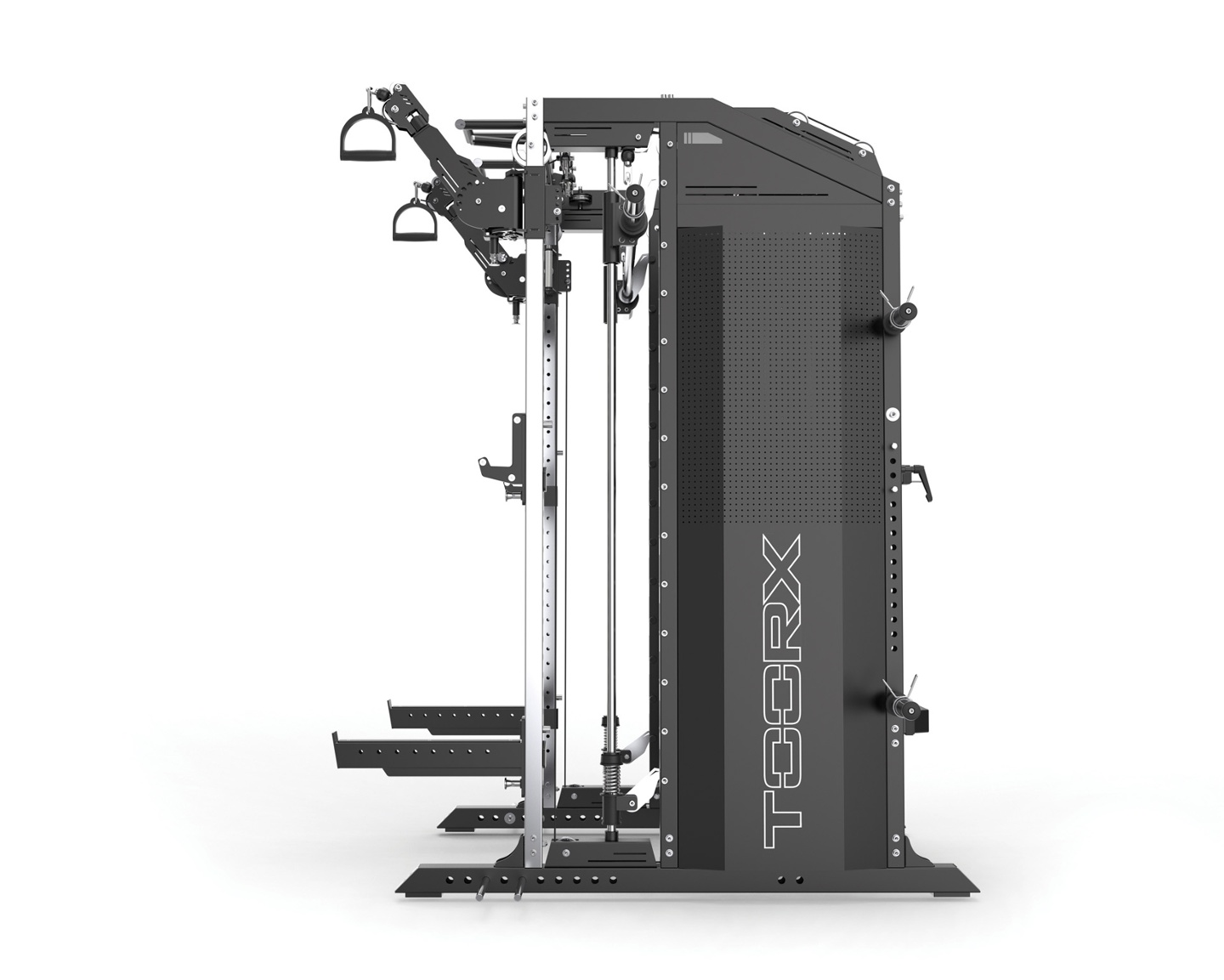

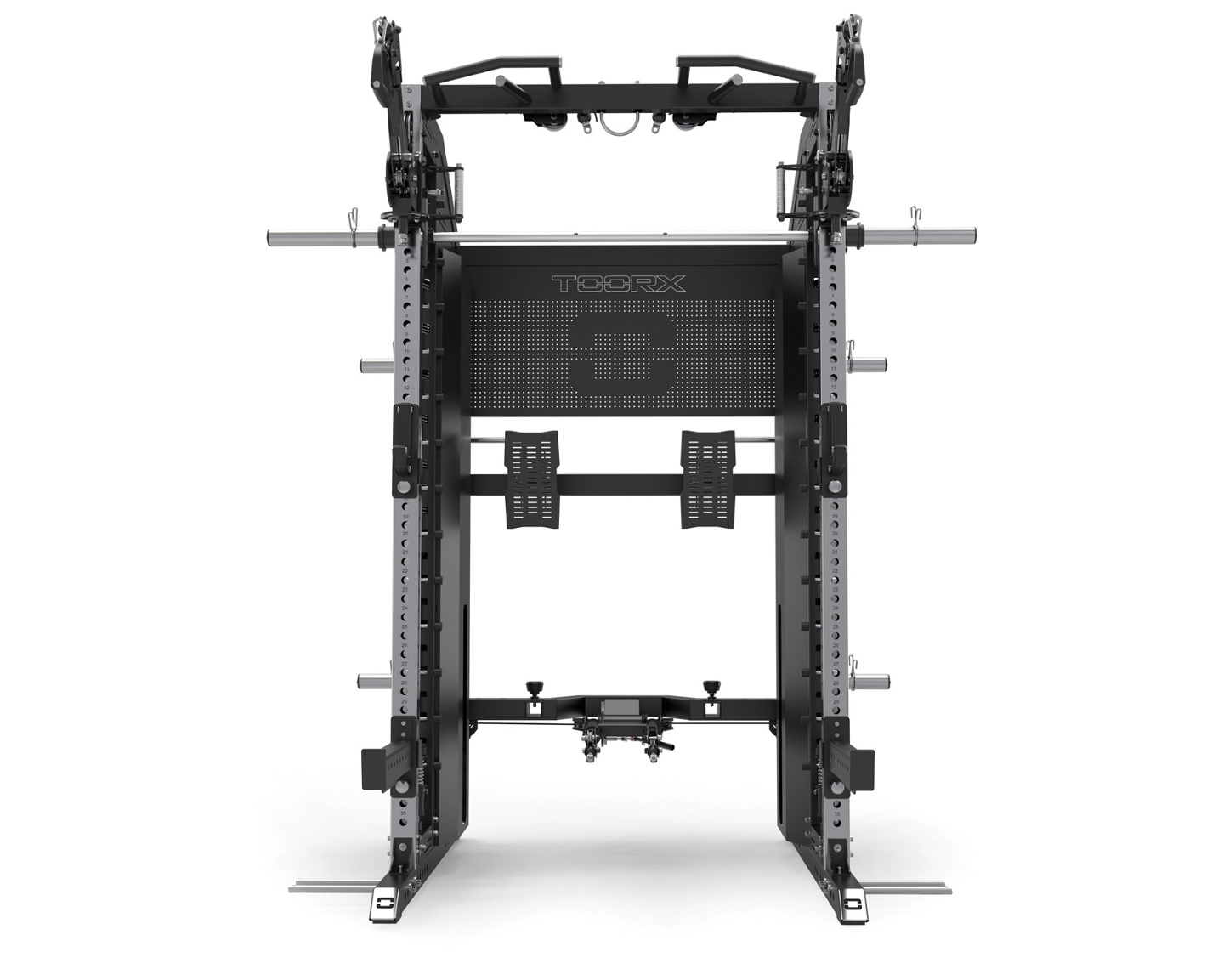

2-IN-1 dual pulley, 3D Smith machine; Code: ASX-9500

KEY POINTS
FLY ARMS
5-level vertical tilt adjustment, 9-level horizontal adjustment (163°). 360° pivoting handles, maximum height of 2,277 mm from the floor for lat pull-downs, maximum width of 2,200 mm for crossovers.

Adjustable to 33 levels (277–1,907 mm), distance 50 mm

MAXIMUM USER WEIGHT
160 Kg

RATIO
Fly handle 2:1, Smith bar 2:1, lat pulldown 2:1 (1:1 with 2 cables together), hack squat 1:1, BENCHASX9.5 hack squat 1:1

BARBELL
2074 mm, glides on an ultra-smooth linear bearing for the Smith machine barbell guide; 2 safety hooks; vertically adjustable to 11 levels (570–1942 mm); 135 mm spacing; minimum height of 550 mm from the ground (on safety hooks). Disc holder diameters: 50 mm and 25 mm.

EQUIPMENT

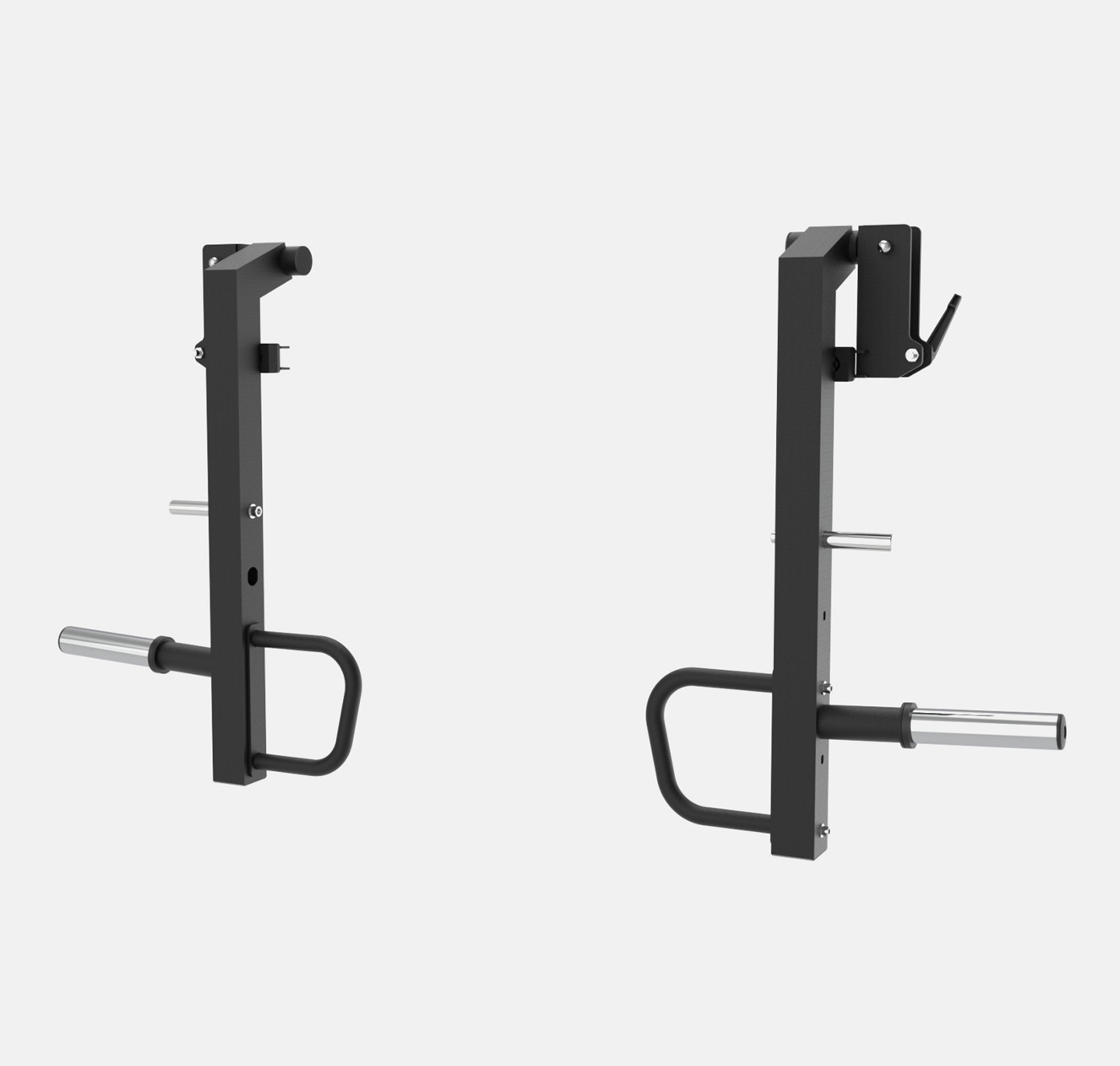

2 J-hooks, a pair of barbell safety locks, 6 spring-loaded plate clips, 4 elastic band hooks, 6 ø50 mm plate holders. Attachments: 3 chains, an ankle strap, 2 single-cord triceps cables, 2 pull-up handles, a double-pulley handle, a straight triceps bar, a lat bar, and a weightlifting belt

Verify availability and prices via WEBSTORES and SALES POINTS authorized dealers!

Images and data in the catalog and on the website's product pages may differ in some details from the originals Some product images may include settings or backgrounds created with the help of artificial intelligence, for illustrative purposes only.
The products shown are real, and their characteristics are not altered by the use of AI.

COMPARE

Technical specifications

Product code
Product code	ASX-9500
Maximum user weight
Maximum user weight	160 kg
Features

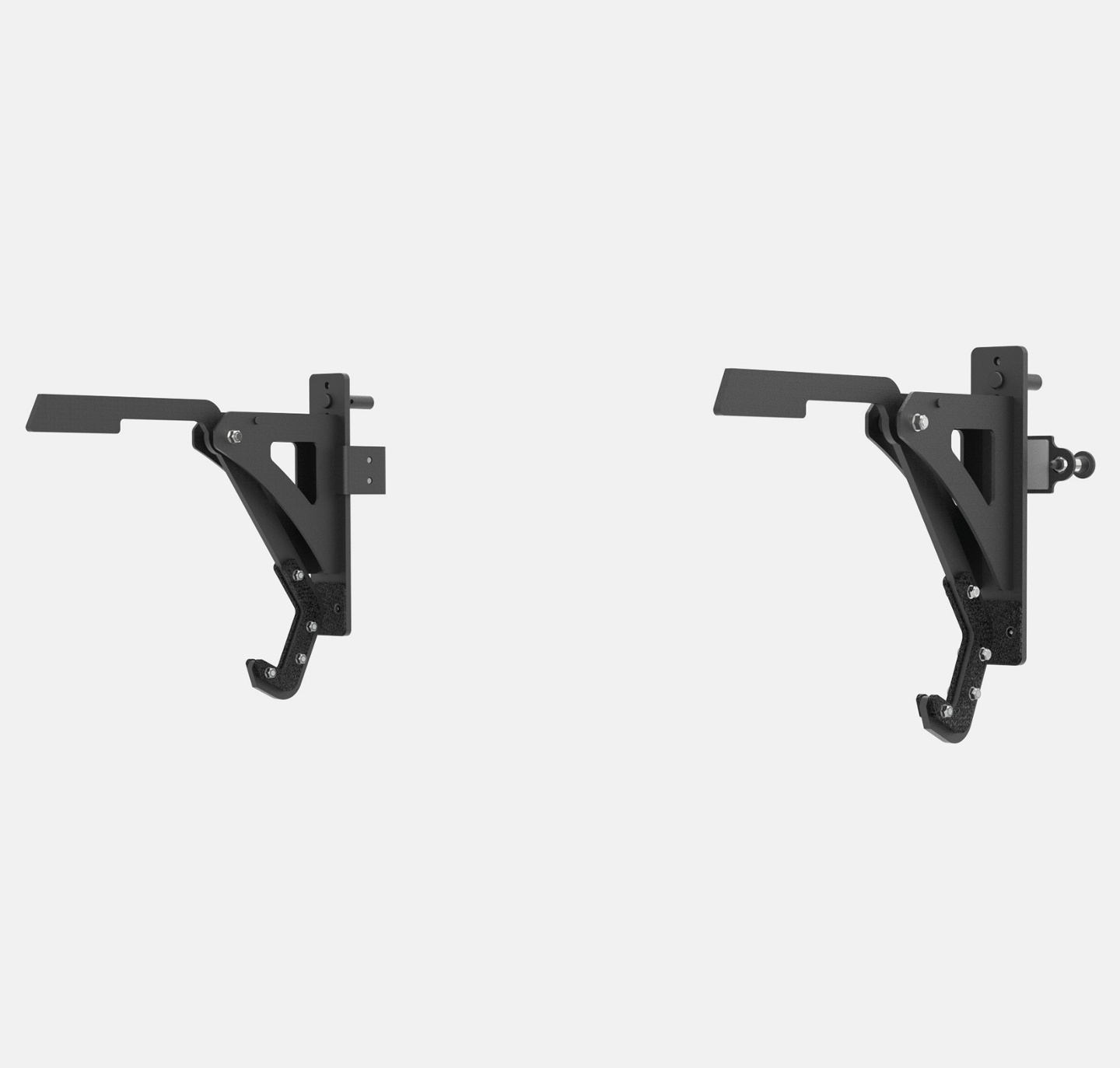

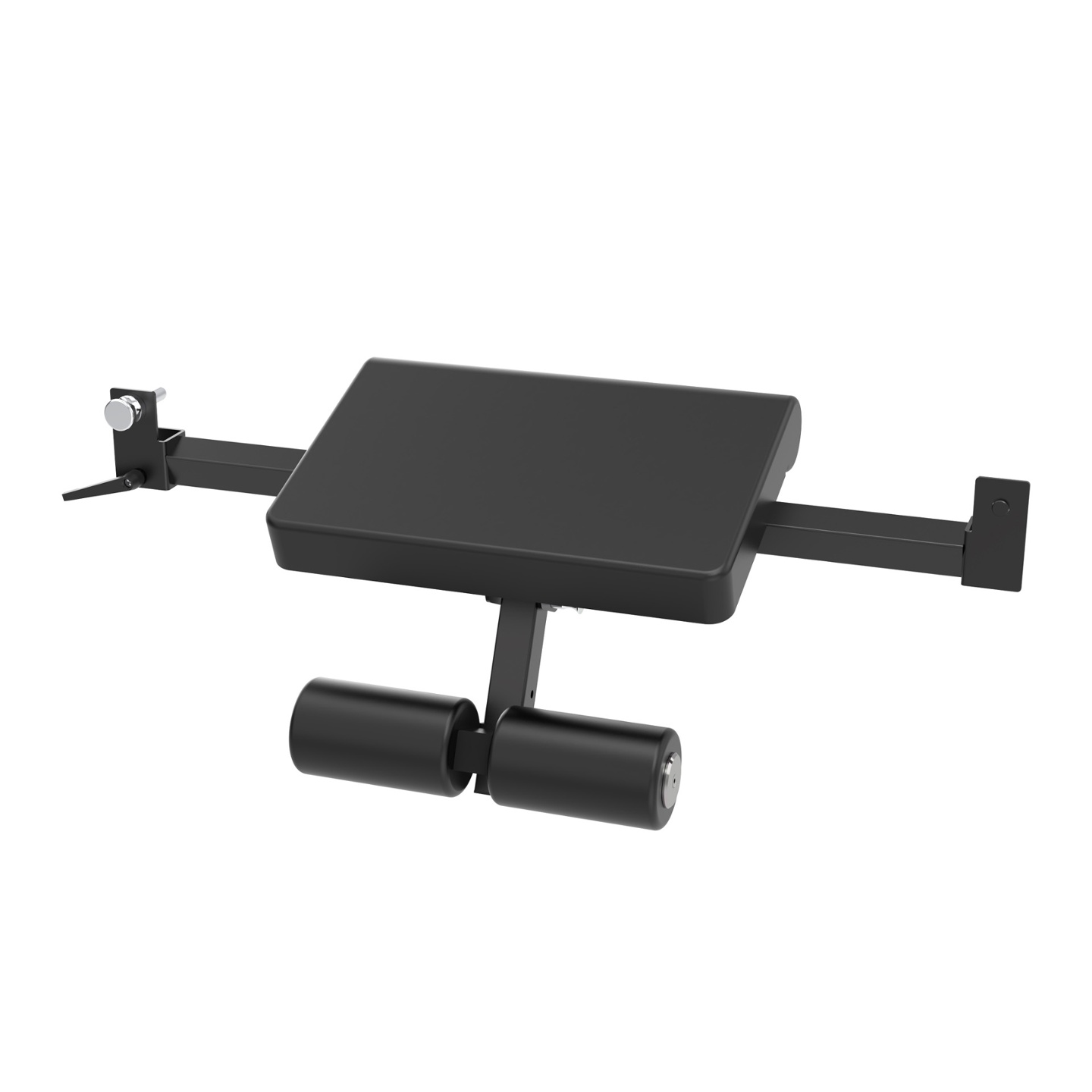

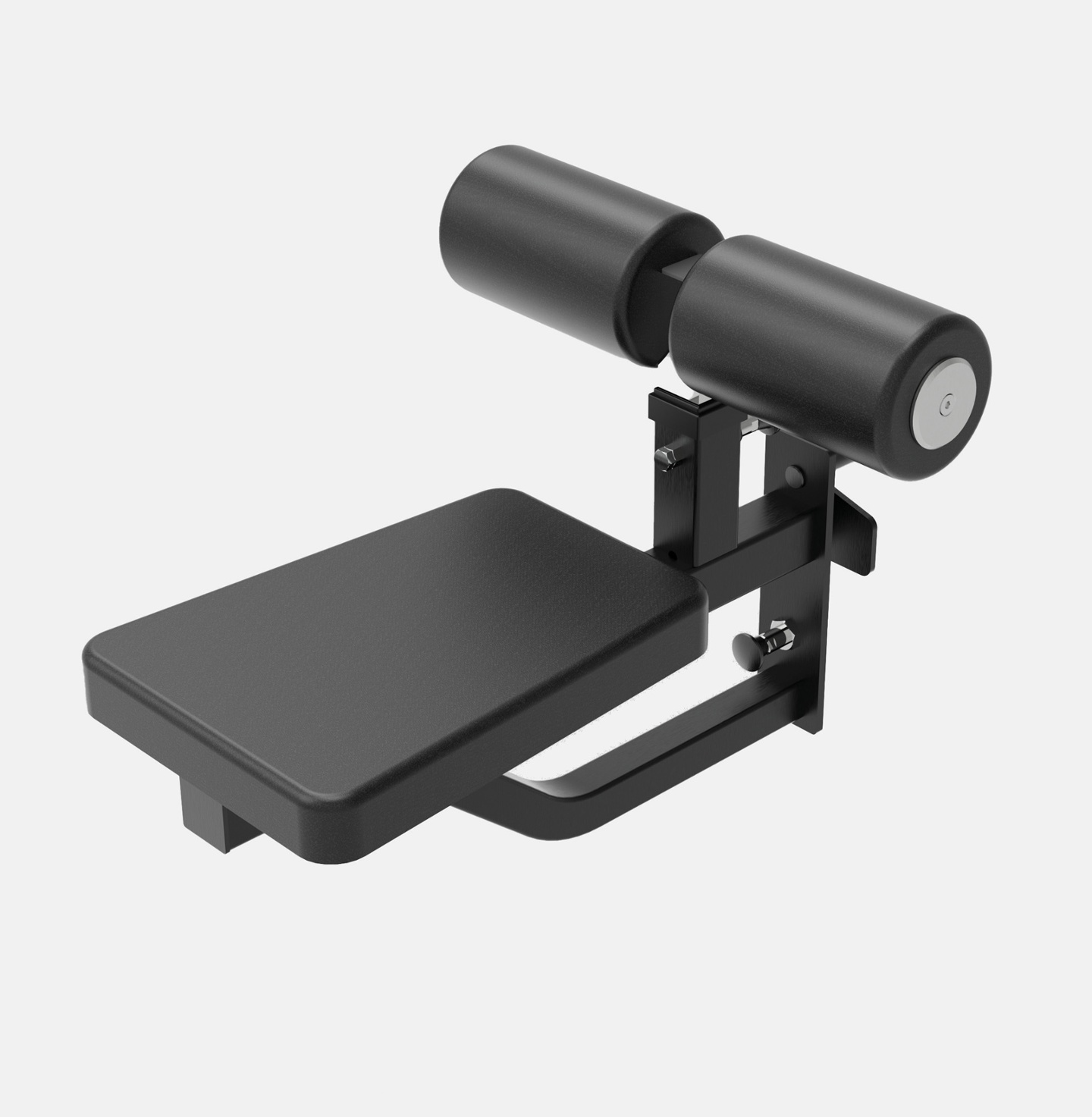

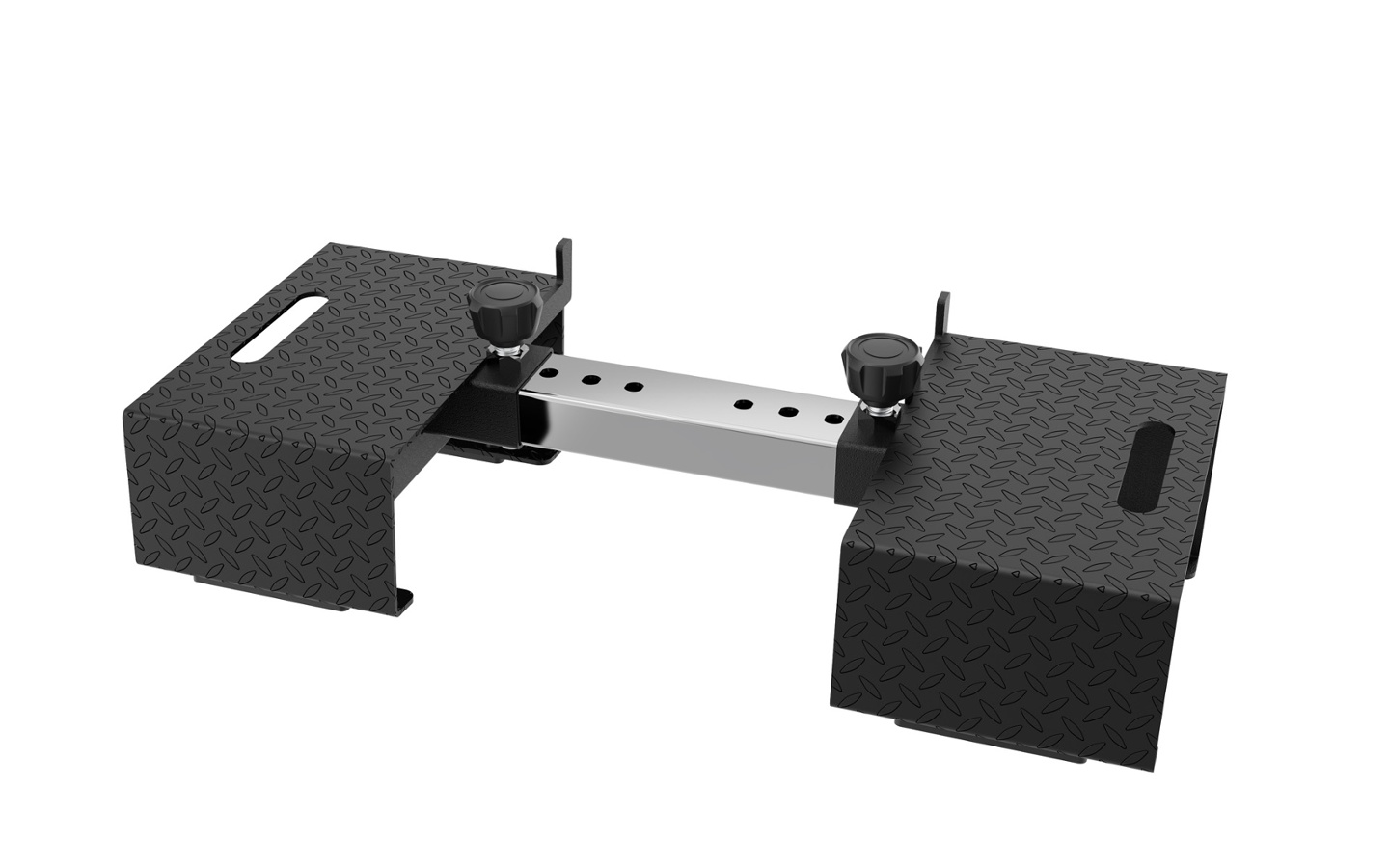

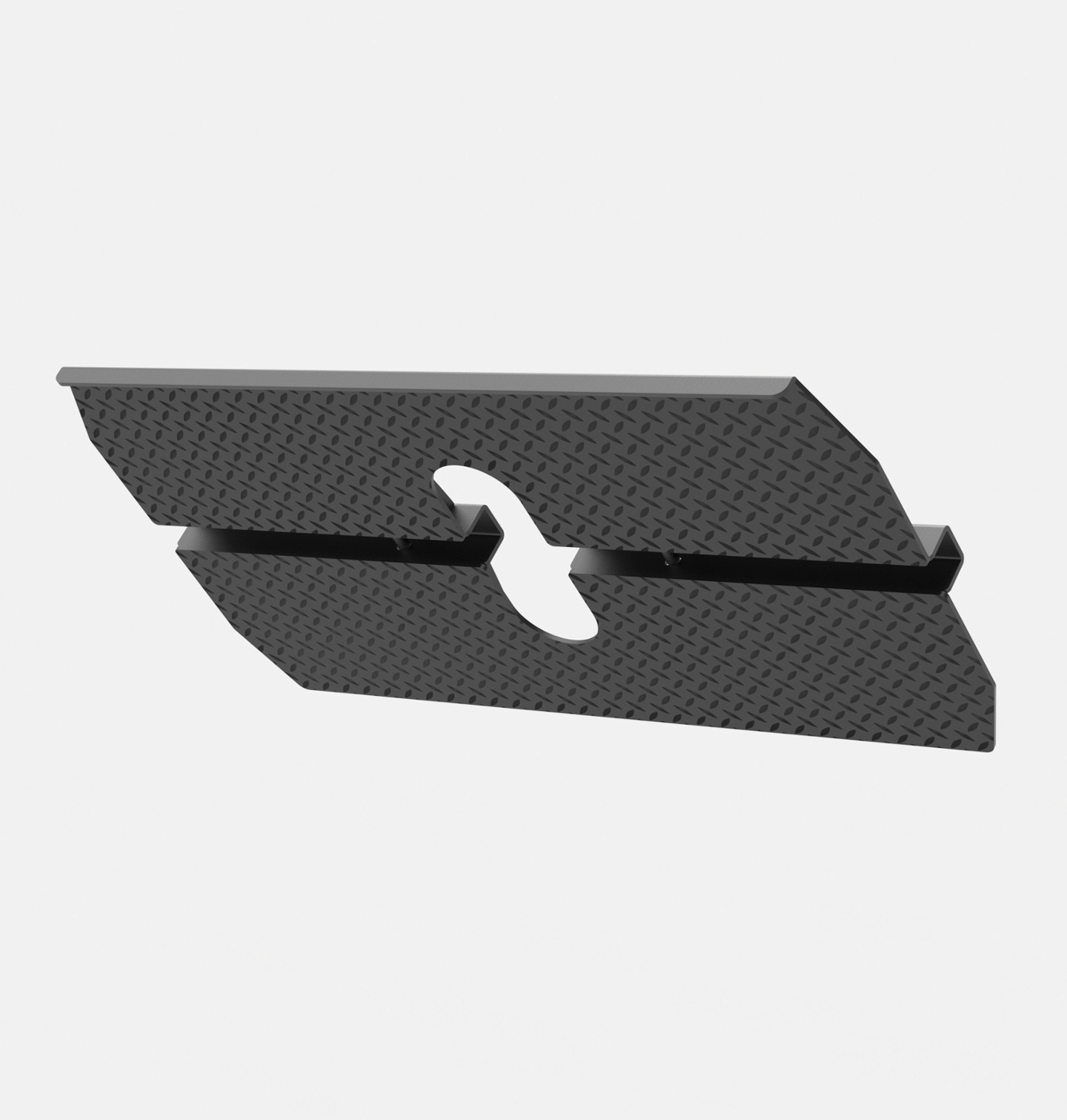

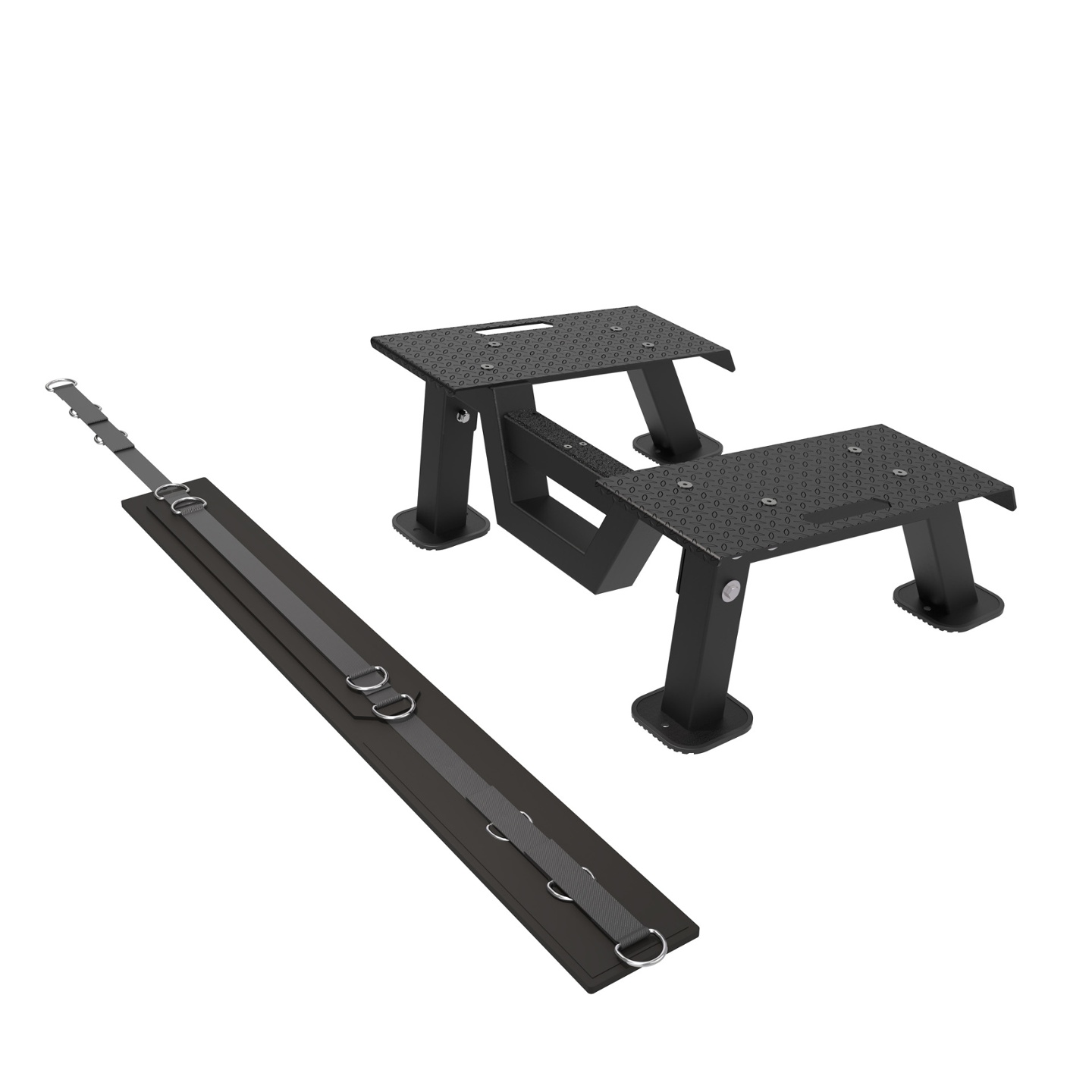

Features	2x90 kg steel weight set with protective casing FLY ARMS : 5-level vertical tilt adjustment , 9-level horizontal adjustment (163°). 360° pivoting handles; maximum height 2,277 mm from the floor for lat pull-downs; maximum width 2,200 mm for crossovers. Adjustable to 33 levels (277–1,907 mm); spacing 50 mm J-CUP/SAFETY SPOTTER ARMS Extra-strong, 5 mm thick, with UHMW (Ultra-High Molecular Weight) protection. Adjustable from 426 to 1822 mm in 34 steps, with a center-to-center distance of 50 mm FOOTREST adjustableto 6 positions and 3 tilt levels. Footrest support height adjustment: 12 positions; 680–1242 mm Barbell bar 2074mm, slides on an ultra-smooth linear bearing for the Smith machine barbell guide; 2 safety hooks; vertically adjustable to 11 levels (570–1942 mm); 135 mm spacing; minimum height 550 mm from the ground (on safety hooks). 50 mm and 25 mm disc holder diameters. Includes 2J-hooks, a pair of barbell safety locks, 6 spring-loaded weight plate clips, 4 elastic band hooks, and 6 weight plate holders (50 mm diameter). Attachments: 3 chains, ankle strap, 2 single triceps ropes, 2 pull-up handles, double pulley handle, straight triceps bar, lat bar, weightlifting belt OPTIONAL CODE: J-ARMSASX6 Jammer Arms COD. HPASX-4.5-6-7-9.5 Hip Thrust with foam roller Hip Thrust with foam roller PRODUCT CODE LEG-PRESSASX Leg Press CODE: LAT-SEATASX-4.5-6 Lat Seat CODE: M-BARASX Multifunctional Bar COD. MLIFTASX-4.5-6 Monolift CODE: LCEASX6-7-9.5 Leg Curl / Leg Extension CODE: BELT-SQUATASX Belt Squat CODE: DL-BENCHASX9.5 Deadlift platform for ASX9500 / Incline position for BENCHASX9.5 Part No. BENCHASX9.5 MULTI-FUNCTIONAL BENCH for ASX-9500
Frame
Frame	rectangular-section tubing: 70x70x2.5 mm, 70x70x3 mm, 50x70x2.5 mm
Product weight
Product weight	452 kg (including weights)
Product Dimensions
Product Dimensions	1235 x 1610 x 2240 mm
Certifications
Certifications	EN20957-1 / EN957-2 class S
